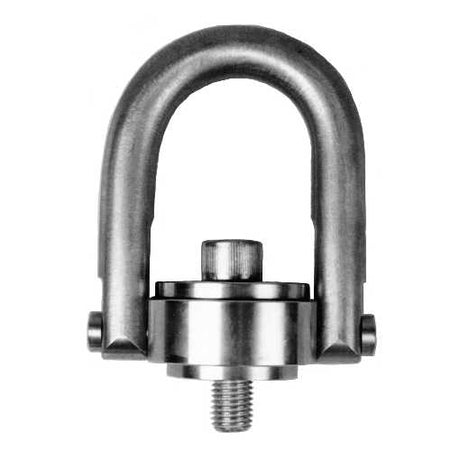

Stainless Steel Hoist Rings

Material: 316 Stainless Steel
Inspection: Liquid Penetrant Inspected
Tested: 200% Proof-Load Tested with Serial Number for Traceability
Rated at: 100% From 0° - 90°
ASME B30.26: Meets or exceeds requirements
Thread: Longer thread projection and Fine thread available

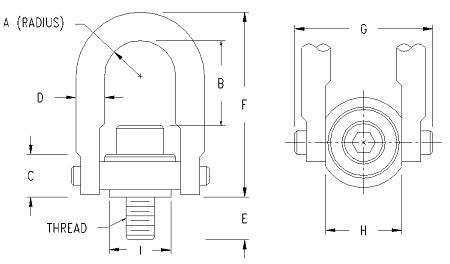

MPN Rated Load Thread Size A B C D E F G H I Torque Weight (lbs) Inspection Replacement Screw Price Quantity
58100 300 lbs 1/4" - 20 0.47 in 1.39 in 0.71 in 3/8 in 0.54 in 2.72 in 1.91 in 1 in 0.85 in 3 ft-lbs .3 lbs Liquid Penetrant Inspected 58139 $313.34
58102 400 lbs 5/16" - 18 0.47 in 1.32 in 0.71 in 3/8 in 0.29 in 2.72 in 1.91 in 1 in 0.85 in 3.5 ft-lbs 0.3 lbs Liquid Penetrant Inspected 58142 $296.67
58104 400 lbs 5/16" - 18 0.47 in 1.32 in 0.71 in 3/8 in 0.54 in 2.72 in 1.91 in 1 in 0.85 in 3.5 ft-lbs 0.3 lbs Liquid Penetrant Inspected 58144 $296.67
58106 500 lbs 3/8" - 16 0.47 in 1.26 in 0.71 in 3/8 in 0.54 in 2.72 in 1.91 in 1 in 0.85 in 6 ft-lbs 0.3 lbs Liquid Penetrant Inspected 58146 $296.67
58602 1,250 lbs 1/2" - 13 0.71 in 1.88 in 0.93 in 1/2 in 1.07 in 3.81 in 2.66 in 1.49 in 1.20 in 14 ft-lbs 1 lbs Liquid Penetrant Inspected 58636 $391.70
58008 1,250 lbs 1/2" - 13 0.92 in 2.46 in 1.23 in 3/4 in 0.78 in 4.93 in 3.66 in 1.98 in 1.45 in 14 ft-lbs 2.6 lbs Liquid Penetrant Inspected 58048 $391.70
58010 1,250 lbs 1/2" - 13 0.92 in 2.46 in 1.23 in 3/4 in 1.03 in 4.93 in 3.66 in 1.98 in 1.45 in 14 ft-lbs 2.6 lbs Liquid Penetrant Inspected 58050 $391.70
58012 1,250 lbs 1/2" - 13 0.92 in 2.46 in 1.23 in 3/4 in 1.28 in 4.93 in 3.66 in 1.98 in 1.45 in 14 ft-lbs 2.6 lbs Liquid Penetrant Inspected 58052 $391.70
58002 2,000 lbs 5/8" - 11 0.92 in 2.33 in 1.23 in 3/4 in 0.78 in 4.93 in 3.66 in 1.98 in 1.45 in 30 ft-lbs 2.6 lbs Liquid Penetrant Inspected 58056 $391.70
58004 2,000 lbs 5/8" - 11 0.92 in 2.33 in 1.23 in 3/4 in 1.03 in 4.93 in 3.66 in 1.98 in 1.45 in 30 ft-lbs 2.6 lbs Liquid Penetrant Inspected 58044 $391.70
58006 2,000 lbs 5/8" - 11 0.92 in 2.33 in 1.23 in 3/4 in 1.28 in 4.93 in 3.66 in 1.98 in 1.45 in 30 ft-lbs 2.6 lbs Liquid Penetrant Inspected 58046 $391.70
58014 2,500 lbs 3/4" - 10 0.92 in 2.21 in 1.23 in 3/4 in 1.03 in 4.93 in 3.66 in 1.98 in 1.45 in 50 ft-lbs 3 lbs Liquid Penetrant Inspected 58054 $391.70
58018 2,500 lbs 3/4" - 10 0.92 in 2.21 in 1.23 in 3/4 in 1.53 in 4.93 in 3.66 in 1.98 in 1.45 in 50 ft-lbs 3 lbs Liquid Penetrant Inspected 58058 $391.70
58204 3,500 lbs 3/4" - 10 1.41 in 3.14 in 1.71 in 1 in 1.04 in 6.60 in 5.16 in 2.99 in 2.20 in 50 ft-lbs 7 lbs Liquid Penetrant Inspected 58244 $600.02
58206 3,500 lbs 3/4" - 10 1.41 in 3.14 in 1.71 in 1 in 1.54 in 6.60 in 5.16 in 2.99 in 2.20 in 50 ft-lbs 7 lbs Liquid Penetrant Inspected 58246 $600.02
58202 4,000 lbs 7/8" - 9 1.41 in 3.02 in 1.71 in 1 in 1.04 in 6.60 in 5.16 in 2.99 in 2.20 in 80 ft-lbs 7 lbs Liquid Penetrant Inspected 58242 $600.02
58203 4,000 lbs 7/8" - 9 1.41 in 3.02 in 1.71 in 1 in 1.29 in 6.60 in 5.16 in 2.99 in 2.20 in 80 ft-lbs 7 lbs Liquid Penetrant Inspected 58243 $600.02
58210 5,000 lbs 1" - 8 1.41 in 2.89 in 1.71 in 1 in 1.29 in 6.60 in 5.16 in 2.99 in 2.20 in 115 ft-lbs 7.5 lbs Liquid Penetrant Inspected 58250 $600.02
58212 5,000 lbs 1" - 8 1.41 in 2.89 in 1.71 in 1 in 1.54 in 6.60 in 5.16 in 2.99 in 2.20 in 115 ft-lbs 7.5 lbs Liquid Penetrant Inspected 58252 $600.02
58214 5,000 lbs 1" - 8 1.41 in 2.89 in 1.71 in 1 in 2.29 in 6.60 in 5.16 in 2.99 in 2.20 in 115 ft-lbs 7.5 lbs Liquid Penetrant Inspected 58254 $600.02
58802 7,500 lbs 1 1/4" - 7 1.76 in 4.20 in 2.12 in 1 1/4 in 1.89 in 8.82 in 6.26 in 3.76 in 3.20 in 235 ft-lbs 14 lbs Liquid Penetrant Inspected 58842 $1,100.05
58404 12,000 lbs 1 1/2" - 6 2.27 in 6.50 in 2.81 in 1 3/4 in 2.70 in 12.56 in 8.34 in 4.87 in 4.15 in 400 ft-lbs 34 lbs Liquid Penetrant Inspected 58444 $1,687.62
58400 15,000 lbs 2" - 4 1/2 2.27 in 6.00 in 2.81 in 1 3/4 in 2.96 in 12.56 in 8.34 in 4.87 in 4.15 in 400 ft-lbs 36 lbs Liquid Penetrant Inspected 58450 $1,771.55
59002 25,000 lbs 2 1/2" - 8 3 in 7.71 in 4.10 in 2 1/4 in 4 in 16.56 in 10.72 in 6.52 in 5.40 in 1,050 ft-lbs 88 lbs Liquid Penetrant Inspected 59052 $5,159.65
59006 25,000 lbs 2 1/2" - 4 3 in 7.71 in 4.10 in 2 1/4 in 4 in 16.56 in 10.72 in 6.52 in 5.40 in 1,050 ft-lbs 88 lbs Liquid Penetrant Inspected 59056 $5,159.65
58644 1,250 lbs 1/2" - 13 0.92 in 4.36 in 1.23 in 3/4 in 0.78 in 6.83 in 3.66 in 1.98 in 1.45 in 14 ft-lbs 2.6 lbs Liquid Penetrant Inspected 58048 $441.70
58646 1,250 lbs 1/2" - 13 0.92 in 4.36 in 1.23 in 3/4 in 1.03 in 6.83 in 3.66 in 1.98 in 1.45 in 14 ft-lbs 2.6 lbs Liquid Penetrant Inspected 58050 $441.70
58648 1,250 lbs 1/2" - 13 0.92 in 4.36 in 1.23 in 3/4 in 1.28 in 6.83 in 3.66 in 1.98 in 1.45 in 14 ft-lbs 2.6 lbs Liquid Penetrant Inspected 58052 $441.70
58641 2,000 lbs 5/8" - 11 0.92 in 4.23 in 1.23 in 3/4 in 0.78 in 6.83 in 3.66 in 1.98 in 1.45 in 30 ft-lbs 2.6 lbs Liquid Penetrant Inspected 58056 $441.70
58640 2,000 lbs 5/8" - 11 0.92 in 4.23 in 1.23 in 3/4 in 1.03 in 6.83 in 3.66 in 1.98 in 1.45 in 30 ft-lbs 2.6 lbs Liquid Penetrant Inspected 58044 $441.70
58642 2,000 lbs 5/8" - 11 0.92 in 4.23 in 1.23 in 3/4 in 1.28 in 6.83 in 3.66 in 1.98 in 1.45 in 30 ft-lbs 2.6 lbs Liquid Penetrant Inspected 58046 $441.70
58650 2,500 lbs 3/4" - 10 0.92 in 4.11 in 1.23 in 3/4 in 1.03 in 6.83 in 3.66 in 1.98 in 1.45 in 50 ft-lbs 3 lbs Liquid Penetrant Inspected 58054 $441.70
58654 2,500 lbs 3/4" - 10 0.92 in 4.11 in 1.23 in 3/4 in 1.53 in 6.83 in 3.66 in 1.98 in 1.45 in 50 ft-lbs 3 lbs Liquid Penetrant Inspected 58058 $441.70
58658 3,500 lbs 3/4" - 10 1.41 in 4.73 in 1.71 in 1 in 1.04 in 8.19 in 5.16 in 3 in 2.2 in 50 ft-lbs 7 lbs Liquid Penetrant Inspected 58244 $708.37
58660 3,500 lbs 3/4" - 10 1.41 in 4.73 in 1.71 in 1 in 1.54 in 8.19 in 5.16 in 3 in 2.2 in 50 ft-lbs 7 lbs Liquid Penetrant Inspected 58246 $708.37
58656 4,000 lbs 7/8" - 9 1.41 in 4.61 in 1.71 in 1 in 1.04 in 8.19 in 5.16 in 3 in 2.2 in 80 ft-lbs 7 lbs Liquid Penetrant Inspected 58242 $708.37
58652 4,000 lbs 7/8" - 9 1.41 in 4.61 in 1.71 in 1 in 1.29 in 8.19 in 5.16 in 3 in 2.2 in 80 ft-lbs 7 lbs Liquid Penetrant Inspected 58243 $708.37
58662 5,000 lbs 1" - 8 1.41 in 4.48 in 1.71 in 1 in 1.29 in 8.19 in 5.16 in 3 in 2.2 in 115 ft-lbs 7.5 lbs Liquid Penetrant Inspected 58250 $708.37
58664 5,000 lbs 1" - 8 1.41 in 4.48 in 1.71 in 1 in 1.54 in 8.19 in 5.16 in 3 in 2.2 in 115 ft-lbs 7.5 lbs Liquid Penetrant Inspected 58252 $708.37
58666 5,000 lbs 1" - 8 1.41 in 4.48 in 1.71 in 1 in 2.29 in 8.19 in 5.16 in 3 in 2.2 in 115 ft-lbs 7.5 lbs Liquid Penetrant Inspected 58254 $708.37
58912 200 kg M8 x 1.25 12 mm 33 mm 18 mm 10 mm 13 mm 69 mm 49 mm 25 mm 22 mm 4 Nm 0.4 lbs Liquid Penetrant Inspected 59143 $311.52
58916 250 kg M10 x 1.50 12 mm 31 mm 18 mm 10 mm 18 mm 69 mm 49 mm 25 mm 22 mm 8 Nm 0.4 lbs Liquid Penetrant Inspected 59146 $311.52
58924 525 kg M12 x 1.75 23 mm 63 mm 31 mm 19 mm 19 mm 125 mm 93 mm 50 mm 37 mm 18 Nm 2.5 lbs Liquid Penetrant Inspected 59048 $411.26
59124 525 kg M12 x 1.75 23 mm 111 mm 31 mm 19 mm 19 mm 174 mm 93 mm 50 mm 37 mm 18 Nm 2.5 lbs Liquid Penetrant Inspected 59048 $463.78
58930 950 kg M16 x 2.00 23 mm 59 mm 31 mm 19 mm 29 mm 125 mm 93 mm 50 mm 37 mm 40 Nm 2.5 lbs Liquid Penetrant Inspected 59057 $411.26
59130 950 kg M16 x 2.00 23 mm 107 mm 31 mm 19 mm 29 mm 174 mm 93 mm 50 mm 37 mm 40 Nm 2.5 lbs Liquid Penetrant Inspected 59057 $463.78
58936 1,075 kg M20 x 2.50 23 mm 55 mm 31 mm 19 mm 34 mm 125 mm 93 mm 50 mm 37 mm 68 Nm 2.5 lbs Liquid Penetrant Inspected 59054 $411.26
59136 1,075 kg M20 x 2.50 23 mm 103 mm 31 mm 19 mm 34 mm 174 mm 93 mm 50 mm 37 mm 68 Nm 2.5 lbs Liquid Penetrant Inspected 59054 $463.78
58942 1,500 kg M20 x 2.50 36 mm 79 mm 43 mm 25 mm 32 mm 168 mm 131 mm 76 mm 56 mm 68 Nm 7 lbs Liquid Penetrant Inspected 59244 $630.03
59142 1,500 kg M20 x 2.50 36 mm 119 mm 43 mm 25 mm 32 mm 208 mm 131 mm 76 mm 56 mm 68 Nm 7 lbs Liquid Penetrant Inspected 59244 $743.79

Products

MPN: 58100
Rated Load: 300 lbs
Thread Size: 1/4" - 20
A: 0.47 in
B: 1.39 in
C: 0.71 in
D: 3/8 in
E: 0.54 in
F: 2.72 in
G: 1.91 in
H: 1 in
I: 0.85 in
Torque: 3 ft-lbs
Weight (lbs): .3 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58139
Price:$313.34
MPN: 58102
Rated Load: 400 lbs
Thread Size: 5/16" - 18
A: 0.47 in
B: 1.32 in
C: 0.71 in
D: 3/8 in
E: 0.29 in
F: 2.72 in
G: 1.91 in
H: 1 in
I: 0.85 in
Torque: 3.5 ft-lbs
Weight (lbs): 0.3 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58142
Price:$296.67
MPN: 58104
Rated Load: 400 lbs
Thread Size: 5/16" - 18
A: 0.47 in
B: 1.32 in
C: 0.71 in
D: 3/8 in
E: 0.54 in
F: 2.72 in
G: 1.91 in
H: 1 in
I: 0.85 in
Torque: 3.5 ft-lbs
Weight (lbs): 0.3 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58144
Price:$296.67
MPN: 58106
Rated Load: 500 lbs
Thread Size: 3/8" - 16
A: 0.47 in
B: 1.26 in
C: 0.71 in
D: 3/8 in
E: 0.54 in
F: 2.72 in
G: 1.91 in
H: 1 in
I: 0.85 in
Torque: 6 ft-lbs
Weight (lbs): 0.3 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58146
Price:$296.67
MPN: 58602
Rated Load: 1,250 lbs
Thread Size: 1/2" - 13
A: 0.71 in
B: 1.88 in
C: 0.93 in
D: 1/2 in
E: 1.07 in
F: 3.81 in
G: 2.66 in
H: 1.49 in
I: 1.20 in
Torque: 14 ft-lbs
Weight (lbs): 1 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58636
Price:$391.70
MPN: 58008
Rated Load: 1,250 lbs
Thread Size: 1/2" - 13
A: 0.92 in
B: 2.46 in
C: 1.23 in
D: 3/4 in
E: 0.78 in
F: 4.93 in
G: 3.66 in
H: 1.98 in
I: 1.45 in
Torque: 14 ft-lbs
Weight (lbs): 2.6 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58048
Price:$391.70
MPN: 58010
Rated Load: 1,250 lbs
Thread Size: 1/2" - 13
A: 0.92 in
B: 2.46 in
C: 1.23 in
D: 3/4 in
E: 1.03 in
F: 4.93 in
G: 3.66 in
H: 1.98 in
I: 1.45 in
Torque: 14 ft-lbs
Weight (lbs): 2.6 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58050
Price:$391.70
MPN: 58012
Rated Load: 1,250 lbs
Thread Size: 1/2" - 13
A: 0.92 in
B: 2.46 in
C: 1.23 in
D: 3/4 in
E: 1.28 in
F: 4.93 in
G: 3.66 in
H: 1.98 in
I: 1.45 in
Torque: 14 ft-lbs
Weight (lbs): 2.6 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58052
Price:$391.70
MPN: 58002
Rated Load: 2,000 lbs
Thread Size: 5/8" - 11
A: 0.92 in
B: 2.33 in
C: 1.23 in
D: 3/4 in
E: 0.78 in
F: 4.93 in
G: 3.66 in
H: 1.98 in
I: 1.45 in
Torque: 30 ft-lbs
Weight (lbs): 2.6 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58056
Price:$391.70
MPN: 58004
Rated Load: 2,000 lbs
Thread Size: 5/8" - 11
A: 0.92 in
B: 2.33 in
C: 1.23 in
D: 3/4 in
E: 1.03 in
F: 4.93 in
G: 3.66 in
H: 1.98 in
I: 1.45 in
Torque: 30 ft-lbs
Weight (lbs): 2.6 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58044
Price:$391.70
MPN: 58006
Rated Load: 2,000 lbs
Thread Size: 5/8" - 11
A: 0.92 in
B: 2.33 in
C: 1.23 in
D: 3/4 in
E: 1.28 in
F: 4.93 in
G: 3.66 in
H: 1.98 in
I: 1.45 in
Torque: 30 ft-lbs
Weight (lbs): 2.6 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58046
Price:$391.70
MPN: 58014
Rated Load: 2,500 lbs
Thread Size: 3/4" - 10
A: 0.92 in
B: 2.21 in
C: 1.23 in
D: 3/4 in
E: 1.03 in
F: 4.93 in
G: 3.66 in
H: 1.98 in
I: 1.45 in
Torque: 50 ft-lbs
Weight (lbs): 3 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58054
Price:$391.70
MPN: 58018
Rated Load: 2,500 lbs
Thread Size: 3/4" - 10
A: 0.92 in
B: 2.21 in
C: 1.23 in
D: 3/4 in
E: 1.53 in
F: 4.93 in
G: 3.66 in
H: 1.98 in
I: 1.45 in
Torque: 50 ft-lbs
Weight (lbs): 3 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58058
Price:$391.70
MPN: 58204
Rated Load: 3,500 lbs
Thread Size: 3/4" - 10
A: 1.41 in
B: 3.14 in
C: 1.71 in
D: 1 in
E: 1.04 in
F: 6.60 in
G: 5.16 in
H: 2.99 in
I: 2.20 in
Torque: 50 ft-lbs
Weight (lbs): 7 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58244
Price:$600.02
MPN: 58206
Rated Load: 3,500 lbs
Thread Size: 3/4" - 10
A: 1.41 in
B: 3.14 in
C: 1.71 in
D: 1 in
E: 1.54 in
F: 6.60 in
G: 5.16 in
H: 2.99 in
I: 2.20 in
Torque: 50 ft-lbs
Weight (lbs): 7 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58246
Price:$600.02
MPN: 58202
Rated Load: 4,000 lbs
Thread Size: 7/8" - 9
A: 1.41 in
B: 3.02 in
C: 1.71 in
D: 1 in
E: 1.04 in
F: 6.60 in
G: 5.16 in
H: 2.99 in
I: 2.20 in
Torque: 80 ft-lbs
Weight (lbs): 7 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58242
Price:$600.02
MPN: 58203
Rated Load: 4,000 lbs
Thread Size: 7/8" - 9
A: 1.41 in
B: 3.02 in
C: 1.71 in
D: 1 in
E: 1.29 in
F: 6.60 in
G: 5.16 in
H: 2.99 in
I: 2.20 in
Torque: 80 ft-lbs
Weight (lbs): 7 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58243
Price:$600.02
MPN: 58210
Rated Load: 5,000 lbs
Thread Size: 1" - 8
A: 1.41 in
B: 2.89 in
C: 1.71 in
D: 1 in
E: 1.29 in
F: 6.60 in
G: 5.16 in
H: 2.99 in
I: 2.20 in
Torque: 115 ft-lbs
Weight (lbs): 7.5 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58250
Price:$600.02
MPN: 58212
Rated Load: 5,000 lbs
Thread Size: 1" - 8
A: 1.41 in
B: 2.89 in
C: 1.71 in
D: 1 in
E: 1.54 in
F: 6.60 in
G: 5.16 in
H: 2.99 in
I: 2.20 in
Torque: 115 ft-lbs
Weight (lbs): 7.5 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58252
Price:$600.02
MPN: 58214
Rated Load: 5,000 lbs
Thread Size: 1" - 8
A: 1.41 in
B: 2.89 in
C: 1.71 in
D: 1 in
E: 2.29 in
F: 6.60 in
G: 5.16 in
H: 2.99 in
I: 2.20 in
Torque: 115 ft-lbs
Weight (lbs): 7.5 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58254
Price:$600.02
MPN: 58802
Rated Load: 7,500 lbs
Thread Size: 1 1/4" - 7
A: 1.76 in
B: 4.20 in
C: 2.12 in
D: 1 1/4 in
E: 1.89 in
F: 8.82 in
G: 6.26 in
H: 3.76 in
I: 3.20 in
Torque: 235 ft-lbs
Weight (lbs): 14 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58842
Price:$1,100.05
MPN: 58404
Rated Load: 12,000 lbs
Thread Size: 1 1/2" - 6
A: 2.27 in
B: 6.50 in
C: 2.81 in
D: 1 3/4 in
E: 2.70 in
F: 12.56 in
G: 8.34 in
H: 4.87 in
I: 4.15 in
Torque: 400 ft-lbs
Weight (lbs): 34 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58444
Price:$1,687.62
MPN: 58400
Rated Load: 15,000 lbs
Thread Size: 2" - 4 1/2
A: 2.27 in
B: 6.00 in
C: 2.81 in
D: 1 3/4 in
E: 2.96 in
F: 12.56 in
G: 8.34 in
H: 4.87 in
I: 4.15 in
Torque: 400 ft-lbs
Weight (lbs): 36 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58450
Price:$1,771.55
MPN: 59002
Rated Load: 25,000 lbs
Thread Size: 2 1/2" - 8
A: 3 in
B: 7.71 in
C: 4.10 in
D: 2 1/4 in
E: 4 in
F: 16.56 in
G: 10.72 in
H: 6.52 in
I: 5.40 in
Torque: 1,050 ft-lbs
Weight (lbs): 88 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 59052
Price:$5,159.65
MPN: 59006
Rated Load: 25,000 lbs
Thread Size: 2 1/2" - 4
A: 3 in
B: 7.71 in
C: 4.10 in
D: 2 1/4 in
E: 4 in
F: 16.56 in
G: 10.72 in
H: 6.52 in
I: 5.40 in
Torque: 1,050 ft-lbs
Weight (lbs): 88 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 59056
Price:$5,159.65
MPN: 58644
Rated Load: 1,250 lbs
Thread Size: 1/2" - 13
A: 0.92 in
B: 4.36 in
C: 1.23 in
D: 3/4 in
E: 0.78 in
F: 6.83 in
G: 3.66 in
H: 1.98 in
I: 1.45 in
Torque: 14 ft-lbs
Weight (lbs): 2.6 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58048
Price:$441.70
MPN: 58646
Rated Load: 1,250 lbs
Thread Size: 1/2" - 13
A: 0.92 in
B: 4.36 in
C: 1.23 in
D: 3/4 in
E: 1.03 in
F: 6.83 in
G: 3.66 in
H: 1.98 in
I: 1.45 in
Torque: 14 ft-lbs
Weight (lbs): 2.6 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58050
Price:$441.70
MPN: 58648
Rated Load: 1,250 lbs
Thread Size: 1/2" - 13
A: 0.92 in
B: 4.36 in
C: 1.23 in
D: 3/4 in
E: 1.28 in
F: 6.83 in
G: 3.66 in
H: 1.98 in
I: 1.45 in
Torque: 14 ft-lbs
Weight (lbs): 2.6 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58052
Price:$441.70
MPN: 58641
Rated Load: 2,000 lbs
Thread Size: 5/8" - 11
A: 0.92 in
B: 4.23 in
C: 1.23 in
D: 3/4 in
E: 0.78 in
F: 6.83 in
G: 3.66 in
H: 1.98 in
I: 1.45 in
Torque: 30 ft-lbs
Weight (lbs): 2.6 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58056
Price:$441.70
MPN: 58640
Rated Load: 2,000 lbs
Thread Size: 5/8" - 11
A: 0.92 in
B: 4.23 in
C: 1.23 in
D: 3/4 in
E: 1.03 in
F: 6.83 in
G: 3.66 in
H: 1.98 in
I: 1.45 in
Torque: 30 ft-lbs
Weight (lbs): 2.6 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58044
Price:$441.70
MPN: 58642
Rated Load: 2,000 lbs
Thread Size: 5/8" - 11
A: 0.92 in
B: 4.23 in
C: 1.23 in
D: 3/4 in
E: 1.28 in
F: 6.83 in
G: 3.66 in
H: 1.98 in
I: 1.45 in
Torque: 30 ft-lbs
Weight (lbs): 2.6 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58046
Price:$441.70
MPN: 58650
Rated Load: 2,500 lbs
Thread Size: 3/4" - 10
A: 0.92 in
B: 4.11 in
C: 1.23 in
D: 3/4 in
E: 1.03 in
F: 6.83 in
G: 3.66 in
H: 1.98 in
I: 1.45 in
Torque: 50 ft-lbs
Weight (lbs): 3 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58054
Price:$441.70
MPN: 58654
Rated Load: 2,500 lbs
Thread Size: 3/4" - 10
A: 0.92 in
B: 4.11 in
C: 1.23 in
D: 3/4 in
E: 1.53 in
F: 6.83 in
G: 3.66 in
H: 1.98 in
I: 1.45 in
Torque: 50 ft-lbs
Weight (lbs): 3 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58058
Price:$441.70
MPN: 58658
Rated Load: 3,500 lbs
Thread Size: 3/4" - 10
A: 1.41 in
B: 4.73 in
C: 1.71 in
D: 1 in
E: 1.04 in
F: 8.19 in
G: 5.16 in
H: 3 in
I: 2.2 in
Torque: 50 ft-lbs
Weight (lbs): 7 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58244
Price:$708.37
MPN: 58660
Rated Load: 3,500 lbs
Thread Size: 3/4" - 10
A: 1.41 in
B: 4.73 in
C: 1.71 in
D: 1 in
E: 1.54 in
F: 8.19 in
G: 5.16 in
H: 3 in
I: 2.2 in
Torque: 50 ft-lbs
Weight (lbs): 7 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58246
Price:$708.37
MPN: 58656
Rated Load: 4,000 lbs
Thread Size: 7/8" - 9
A: 1.41 in
B: 4.61 in
C: 1.71 in
D: 1 in
E: 1.04 in
F: 8.19 in
G: 5.16 in
H: 3 in
I: 2.2 in
Torque: 80 ft-lbs
Weight (lbs): 7 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58242
Price:$708.37
MPN: 58652
Rated Load: 4,000 lbs
Thread Size: 7/8" - 9
A: 1.41 in
B: 4.61 in
C: 1.71 in
D: 1 in
E: 1.29 in
F: 8.19 in
G: 5.16 in
H: 3 in
I: 2.2 in
Torque: 80 ft-lbs
Weight (lbs): 7 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58243
Price:$708.37
MPN: 58662
Rated Load: 5,000 lbs
Thread Size: 1" - 8
A: 1.41 in
B: 4.48 in
C: 1.71 in
D: 1 in
E: 1.29 in
F: 8.19 in
G: 5.16 in
H: 3 in
I: 2.2 in
Torque: 115 ft-lbs
Weight (lbs): 7.5 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58250
Price:$708.37
MPN: 58664
Rated Load: 5,000 lbs
Thread Size: 1" - 8
A: 1.41 in
B: 4.48 in
C: 1.71 in
D: 1 in
E: 1.54 in
F: 8.19 in
G: 5.16 in
H: 3 in
I: 2.2 in
Torque: 115 ft-lbs
Weight (lbs): 7.5 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58252
Price:$708.37
MPN: 58666
Rated Load: 5,000 lbs
Thread Size: 1" - 8
A: 1.41 in
B: 4.48 in
C: 1.71 in
D: 1 in
E: 2.29 in
F: 8.19 in
G: 5.16 in
H: 3 in
I: 2.2 in
Torque: 115 ft-lbs
Weight (lbs): 7.5 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 58254
Price:$708.37
MPN: 58912
Rated Load: 200 kg
Thread Size: M8 x 1.25
A: 12 mm
B: 33 mm
C: 18 mm
D: 10 mm
E: 13 mm
F: 69 mm
G: 49 mm
H: 25 mm
I: 22 mm
Torque: 4 Nm
Weight (lbs): 0.4 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 59143
Price:$311.52
MPN: 58916
Rated Load: 250 kg
Thread Size: M10 x 1.50
A: 12 mm
B: 31 mm
C: 18 mm
D: 10 mm
E: 18 mm
F: 69 mm
G: 49 mm
H: 25 mm
I: 22 mm
Torque: 8 Nm
Weight (lbs): 0.4 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 59146
Price:$311.52
MPN: 58924
Rated Load: 525 kg
Thread Size: M12 x 1.75
A: 23 mm
B: 63 mm
C: 31 mm
D: 19 mm
E: 19 mm
F: 125 mm
G: 93 mm
H: 50 mm
I: 37 mm
Torque: 18 Nm
Weight (lbs): 2.5 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 59048
Price:$411.26
MPN: 59124
Rated Load: 525 kg
Thread Size: M12 x 1.75
A: 23 mm
B: 111 mm
C: 31 mm
D: 19 mm
E: 19 mm
F: 174 mm
G: 93 mm
H: 50 mm
I: 37 mm
Torque: 18 Nm
Weight (lbs): 2.5 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 59048
Price:$463.78
MPN: 58930
Rated Load: 950 kg
Thread Size: M16 x 2.00
A: 23 mm
B: 59 mm
C: 31 mm
D: 19 mm
E: 29 mm
F: 125 mm
G: 93 mm
H: 50 mm
I: 37 mm
Torque: 40 Nm
Weight (lbs): 2.5 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 59057
Price:$411.26
MPN: 59130
Rated Load: 950 kg
Thread Size: M16 x 2.00
A: 23 mm
B: 107 mm
C: 31 mm
D: 19 mm
E: 29 mm
F: 174 mm
G: 93 mm
H: 50 mm
I: 37 mm
Torque: 40 Nm
Weight (lbs): 2.5 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 59057
Price:$463.78
