Stainless Steel Hoist Rings

Material: 316 Stainless Steel
Inspection: Liquid Penetrant Inspected
Tested: 200% Proof-Load Tested with Serial Number for Traceability
Rated at: 100% From 0° - 90°
ASME B30.26: Meets or exceeds requirements
Thread: Longer thread projection and Fine thread available

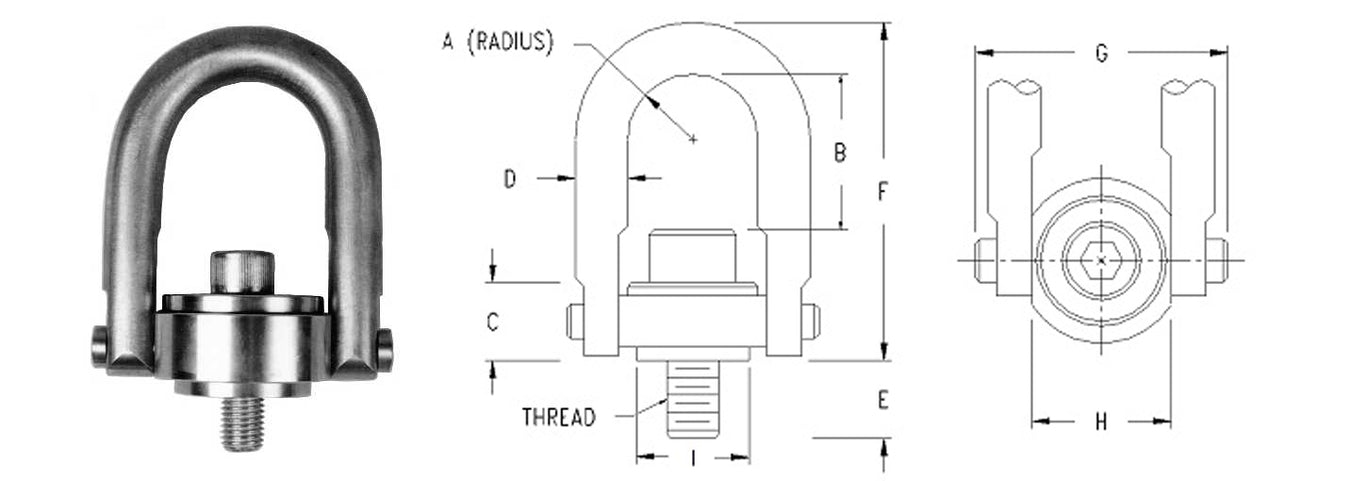

MPN Rated Load Thread Size A B C D E F G H I Torque Weight (lbs) Inspection Replacement Screw Price Quantity
58948 2,100 kg M24 x 3.00 36 mm 75 mm 43 mm 25 mm 37 mm 168 mm 131 mm 76 mm 56 mm 108 Nm 7 lbs Liquid Penetrant Inspected 59250 $630.03
59148 2,100 kg M24 x 3.00 36 mm 115 mm 43 mm 25 mm 37 mm 208 mm 131 mm 76 mm 56 mm 108 Nm 7 lbs Liquid Penetrant Inspected 59250 $743.79
58950 2,100 kg M30 x 3.50 36 mm 109 mm 43 mm 25 mm 58 mm 208 mm 131 mm 76 mm 56 mm 108 Nm 7 lbs Liquid Penetrant Inspected 59242 $743.79
58956 3,500 kg M30 x 3.50 45 mm 108 mm 54 mm 32 mm 42 mm 224 mm 159 mm 96 mm 81 mm 318 Nm 15 lbs Liquid Penetrant Inspected 59842 $1,155.09
58958 3,500 kg M30 x 3.50 45 mm 108 mm 54 mm 32 mm 62 mm 224 mm 159 mm 96 mm 81 mm 318 Nm 15 lbs Liquid Penetrant Inspected 59846 $1,155.09
58966 5,500 kg M36 x 4.00 58 mm 167 mm 71 mm 44 mm 64 mm 319 mm 212 mm 124 mm 105 mm 542 Nm 35 lbs Liquid Penetrant Inspected 59344 $1,771.98
58968 6,250 kg M42 x 4.50 58 mm 161 mm 71 mm 44 mm 82 mm 319 mm 212 mm 124 mm 105 mm 542 Nm 36 lbs Liquid Penetrant Inspected 59444 $1,771.98
58970 6,750 kg M48 x 5.00 58 mm 155 mm 71 mm 44 mm 82 mm 319 mm 212 mm 124 mm 105 mm 542 Nm 38 lbs Liquid Penetrant Inspected 59450 $1,860.11

Products

MPN: 58956
Rated Load: 3,500 kg
Thread Size: M30 x 3.50
A: 45 mm
B: 108 mm
C: 54 mm
D: 32 mm
E: 42 mm
F: 224 mm
G: 159 mm
H: 96 mm
I: 81 mm
Torque: 318 Nm
Weight (lbs): 15 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 59842
Price:$1,155.09
MPN: 58958
Rated Load: 3,500 kg
Thread Size: M30 x 3.50
A: 45 mm
B: 108 mm
C: 54 mm
D: 32 mm
E: 62 mm
F: 224 mm
G: 159 mm
H: 96 mm
I: 81 mm
Torque: 318 Nm
Weight (lbs): 15 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 59846
Price:$1,155.09
MPN: 58966
Rated Load: 5,500 kg
Thread Size: M36 x 4.00
A: 58 mm
B: 167 mm
C: 71 mm
D: 44 mm
E: 64 mm
F: 319 mm
G: 212 mm
H: 124 mm
I: 105 mm
Torque: 542 Nm
Weight (lbs): 35 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 59344
Price:$1,771.98
MPN: 58968
Rated Load: 6,250 kg
Thread Size: M42 x 4.50
A: 58 mm
B: 161 mm
C: 71 mm
D: 44 mm
E: 82 mm
F: 319 mm
G: 212 mm
H: 124 mm
I: 105 mm
Torque: 542 Nm
Weight (lbs): 36 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 59444
Price:$1,771.98
MPN: 58970
Rated Load: 6,750 kg
Thread Size: M48 x 5.00
A: 58 mm
B: 155 mm
C: 71 mm
D: 44 mm
E: 82 mm
F: 319 mm
G: 212 mm
H: 124 mm
I: 105 mm
Torque: 542 Nm
Weight (lbs): 38 lbs
Inspection: Liquid Penetrant Inspected
Replacement Screw: 59450
Price:$1,860.11
