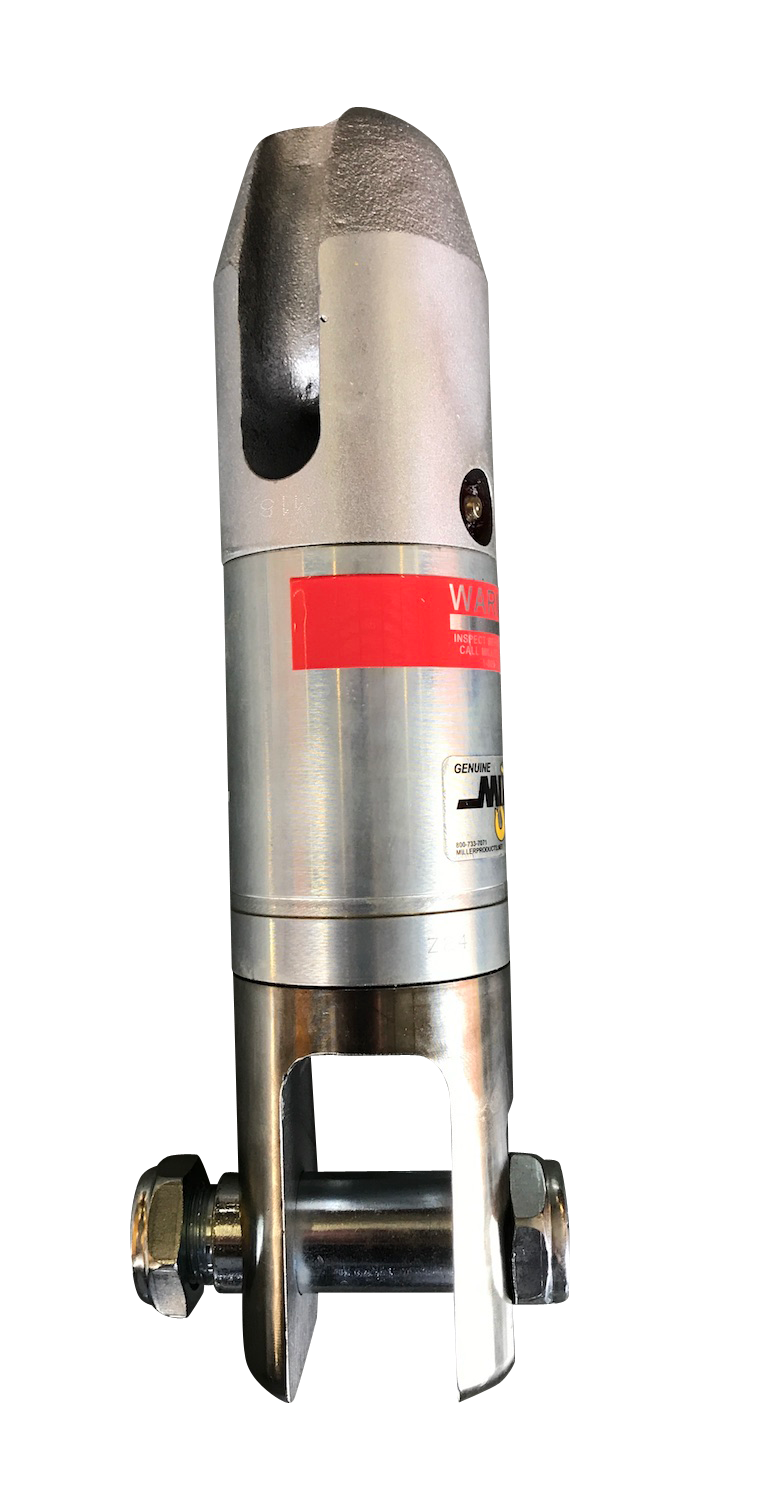

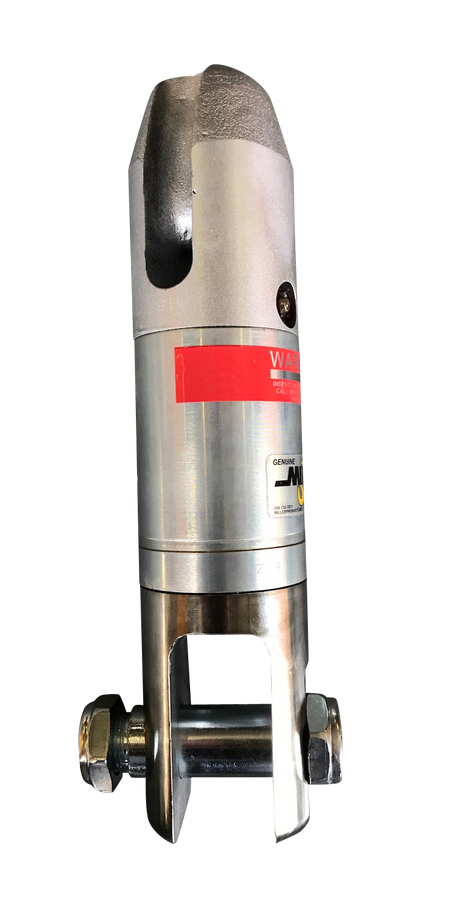

Thimble to Clevis – Type 611

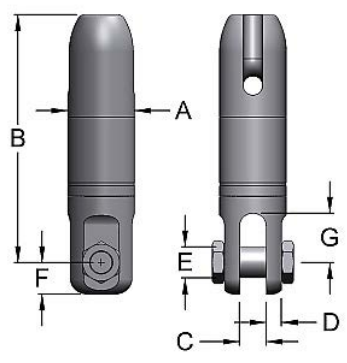

Working Load Limit (ton)	MPN	Rope Size	A	B	C	D	E	F	G	Weight (lbs)	Price	Quantity
Miller Angular Contact Ball Bearing Swivel Model B-611 Thimble to Jaw WLL 1.5 tons	1.5	B-611	3/8	1.63	6	0.5	0.31	0.5	0.69	0.78	2.5	$878.85

Miller Angular Contact Ball Bearing Swivel Model C-611 Thimble to Jaw WLL 3 tons (C-611)	3	C-611	1/2	2	8.06	0.75	0.38	0.75	0.94	1.19	5.25	$1,001.70

Miller Angular Contact Ball Bearing Swivel Model D-611 Thimble to Jaw WLL 5 tons	5	D-611	5/8	2.5	9.31	1	0.56	0.88	1.13	1.56	10	$1,219.05

Miller Angular Contact Ball Bearing Swivel Model EE-611 Thimble to Jaw WLL 8.5 tons	8.5	EE-611	3/4	2.88	11.38	1.56	0.53	1.19	1.34	2.09	16.5	$1,663.20

Miller Angular Contact Ball Bearing Swivel Model G-611 Thimble to Jaw WLL 10 tons	10	G-611	7/8	4	15.38	1.75	0.81	1.5	1.75	3.5	42	$3,052.35

Miller Angular Contact Ball Bearing Swivel Model GG-611 Thimble to Jaw WLL 15 tons	15	GG-611	1	4	15.38	1.75	0.81	1.5	1.75	3.5	42	$3,127.95

Products

Working Load Limit (ton): 1.5

MPN: B-611

Rope Size: 3/8

A: 1.63

B: 6

C: 0.5

D: 0.31

E: 0.5

F: 0.69

G: 0.78

Weight (lbs): 2.5

Price:$878.85

Working Load Limit (ton): 3

MPN: C-611

Rope Size: 1/2

A: 2

B: 8.06

C: 0.75

D: 0.38

E: 0.75

F: 0.94

G: 1.19

Weight (lbs): 5.25

Price:$1,001.70

Working Load Limit (ton): 5

MPN: D-611

Rope Size: 5/8

A: 2.5

B: 9.31

C: 1

D: 0.56

E: 0.88

F: 1.13

G: 1.56

Weight (lbs): 10

Price:$1,219.05

Working Load Limit (ton): 8.5

MPN: EE-611

Rope Size: 3/4

A: 2.88

B: 11.38

C: 1.56

D: 0.53

E: 1.19

F: 1.34

G: 2.09

Weight (lbs): 16.5

Price:$1,663.20

Working Load Limit (ton): 10

MPN: G-611

Rope Size: 7/8

A: 4

B: 15.38

C: 1.75

D: 0.81

E: 1.5

F: 1.75

G: 3.5

Weight (lbs): 42

Price:$3,052.35

Working Load Limit (ton): 15

MPN: GG-611

Rope Size: 1

A: 4

B: 15.38

C: 1.75

D: 0.81

E: 1.5

F: 1.75

G: 3.5

Weight (lbs): 42

Price:$3,127.95
