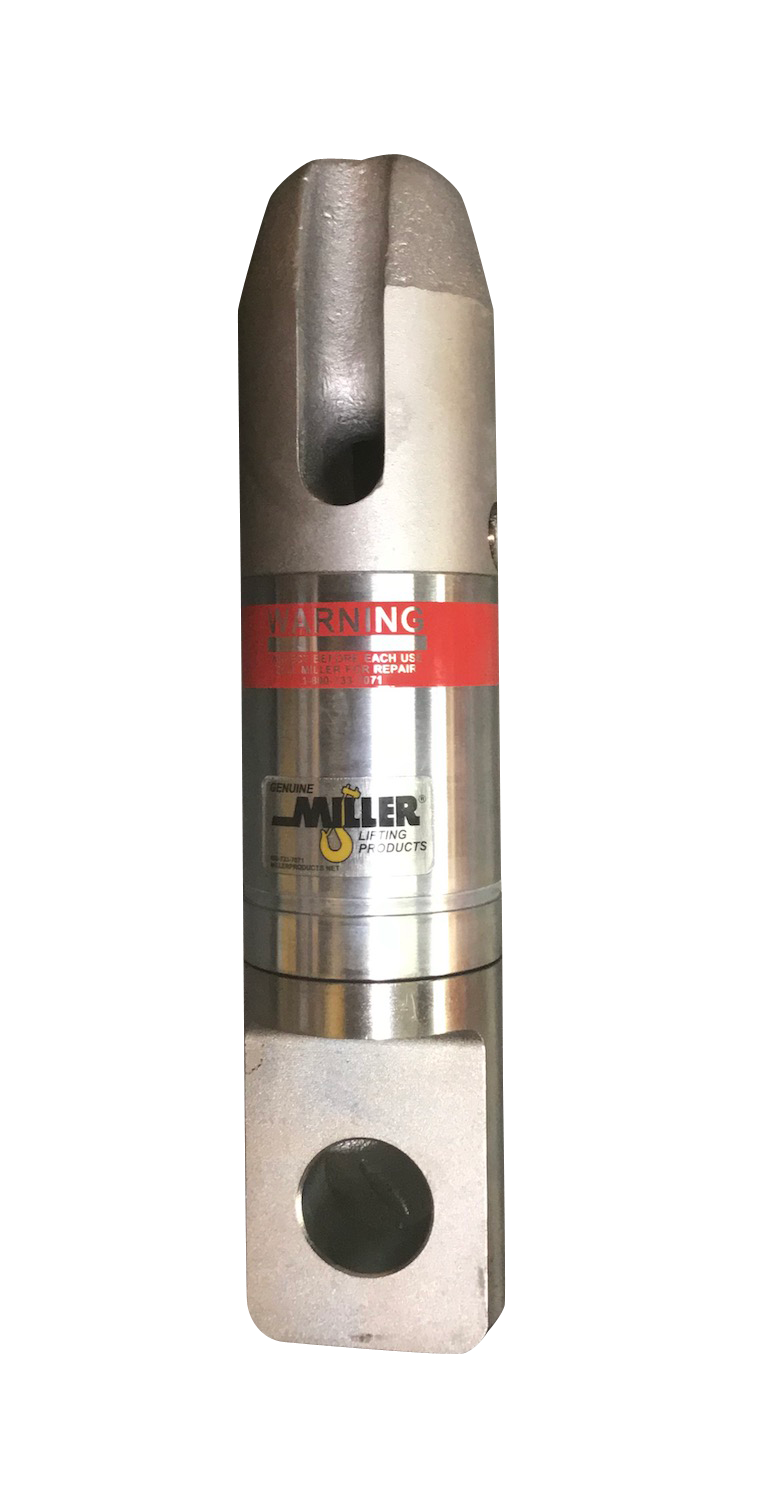

Thimble to Eye – Type 612

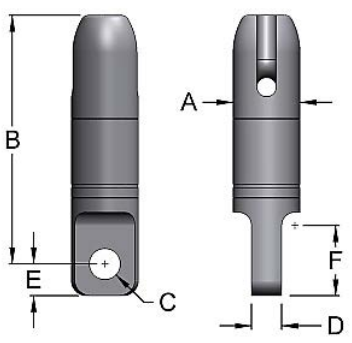

Working Load Limit (ton)	MPN	Rope Size	A	B	C	D	E	F	Weight (lbs)	Price	Quantity
Miller Angular Contact Ball Bearing Swivel Model B-612 Thimble to Eye WLL 1.5 tons	1.5	B-612	3/8	1.63	6.13	0.66	0.5	0.63	1.34	2.43	$878.85

Miller Angular Contact Ball Bearing Swivel Model C-612 Thimble to Eye WLL 3 tons (C-612)	3	C-612	1/2	2	8	0.91	0.75	1	1.94	6	$1,001.70

Miller Angular Contact Ball Bearing Swivel Model D-612 Thimble to Eye WLL 5 tons	5	D-612	5/8	2.5	9.25	1.28	1	1.19	2.5	9.43	$1,219.05

Miller Angular Contact Ball Bearing Swivel Model EE-612 Thimble to Eye WLL 8.5 tons	8.5	EE-612	3/4	2.88	11.31	1.41	1.25	1.5	3.13	16.5	$1,663.20

Miller Angular Contact Ball Bearing Swivel Model G-612 Thimble to Eye WLL 10 tons	10	G-612	7/8	4	15.44	1.66	1.72	1.81	4.66	41	$3,052.35

Miller Angular Contact Ball Bearing Swivel Model GG-612 Thimble to Eye WLL 15 tons	15	GG-612	1	4	15.44	2.03	1.94	2.13	4.91	42	$3,127.95

Products

Working Load Limit (ton): 1.5

MPN: B-612

Rope Size: 3/8

A: 1.63

B: 6.13

C: 0.66

D: 0.5

E: 0.63

F: 1.34

Weight (lbs): 2.43

Price:$878.85

Working Load Limit (ton): 3

MPN: C-612

Rope Size: 1/2

A: 2

B: 8

C: 0.91

D: 0.75

E: 1

F: 1.94

Weight (lbs): 6

Price:$1,001.70

Working Load Limit (ton): 5

MPN: D-612

Rope Size: 5/8

A: 2.5

B: 9.25

C: 1.28

D: 1

E: 1.19

F: 2.5

Weight (lbs): 9.43

Price:$1,219.05

Working Load Limit (ton): 8.5

MPN: EE-612

Rope Size: 3/4

A: 2.88

B: 11.31

C: 1.41

D: 1.25

E: 1.5

F: 3.13

Weight (lbs): 16.5

Price:$1,663.20

Working Load Limit (ton): 10

MPN: G-612

Rope Size: 7/8

A: 4

B: 15.44

C: 1.66

D: 1.72

E: 1.81

F: 4.66

Weight (lbs): 41

Price:$3,052.35

Working Load Limit (ton): 15

MPN: GG-612

Rope Size: 1

A: 4

B: 15.44

C: 2.03

D: 1.94

E: 2.13

F: 4.91

Weight (lbs): 42

Price:$3,127.95
