TSU/TSEU/STSU Vertical Lifting Clamps

Application
  • For vertical lifting, transporting and turning of all steel plates and structures from all positions
  • Jaw openings available from: 0 to 150 mm
  • TSEU / STSU types are supplied with enlarged jaw opening
  • Working load limit (WLL) 750 - 30000kg (Higher WLL available upon request)
  • Min . WLL is 10% of max . WLL
  • note: the plate surface of the material must have a hardness level of max. HrC 37/345 Hb
Features and benefits
  • With articulated lifting shackle for universal lifting flexibility at various angles

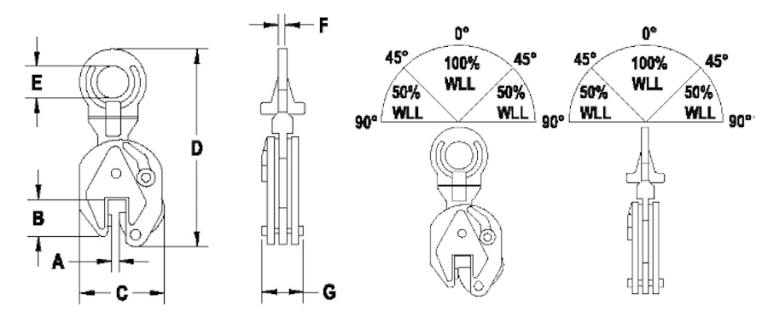

  • The articulated lifting shackle guarantees a pressure grip in every position, even when side loading up to 90 degrees . Note a lower load capacity when lifting in an angle higher than 45 degrees . Please check the WLL reduction below
  • Longer plates can be lifted without the use of a spreader beam when using two clamps on a two legged chain sling
  • Always equipped with a safety mechanism, ensuring the clamp does not slip when Vertical lifting lifting force is applied and when load is being lowered
  • Clamp is locked in closed as well as open position
  • Lightweight, maintenance-friendly, heavy duty body

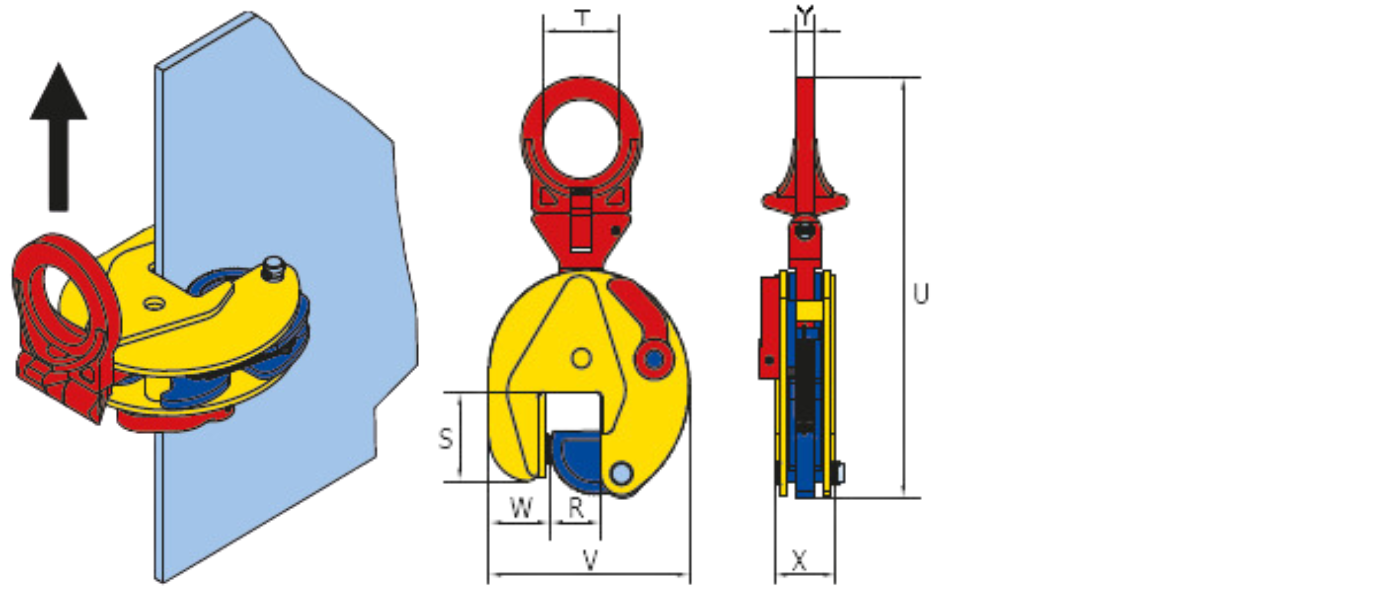

MPN Type Working Load Limit (lbs.) Jaw Opening (in.) S (in.) T (in.) U (in.) V (in.) W (in.) X (in.) Y (in.) Price Quantity
855000 0.75 TSU 1,600 0 - 0.51 1.85 1.18 7.99 3.94 1.46 1.46 0.39 $534.67
865800 1 TSEU 2,200 0 - 1.00 2.20 1.97 11.50 5.55 1.46 1.85 0.59 $539.70
856401 12 STSU 26,400 2.00 - 3.93 5.98 3.35 25.35 13.54 3.94 3.70 1.89 $3,414.52
865901 12 TSU 26,400 0 - 2.04 5.83 3.35 25.51 11.61 3.94 3.70 1.89 $2,596.78
966150 15 STSU 33,000 3.14 - 5.90 8.82 3.35 31.81 17.72 5.35 4.17 1.89 $4,447.49
955150 15 TSU 33,000 0 - 3.00 8.23 3.35 32.13 14.69 5.35 4.17 1.89 $4,608.24
955170 17 TSU 37,400 0 - 3.00 8.23 3.35 32.13 14.69 5.35 4.17 1.89 $6,584.68
855601 2 TSEU 4,400 0 - 1.37 3.07 2.76 14.65 7.20 2.20 2.20 0.63 $815.71
966200 20 STSU 44,000 3.14 - 5.90 9.80 3.94 37.07 25.20 6.02 5.51 2.80 $8,874.89
955200 20 TSU 44,000 0 - 3.14 9.84 3.94 37.32 22.17 6.02 5.51 2.80 $7,408.06
966250 25 STSU 55,000 3.14 - 5.90 9.80 3.94 37.01 25.20 6.02 5.51 2.80 $10,149.77
955250 25 TSU 55,000 0.19 - 3.34 9.84 3.94 37.32 22.17 5.83 5.51 2.80 $8,115.77
865331 3 TSEU 6,600 0 - 1.37 3.07 2.76 14.65 7.20 2.20 2.20 0.63 $890.81
966300 30 STSU 66,000 3.14 - 5.90 9.80 3.94 37.24 25.39 6.14 5.59 2.80 $13,023.23
955300 30 TSU 66,000 0.39 - 3.54 9.84 3.94 37.17 22.36 6.02 5.59 2.80 $12,011.81
865301 4.5 TSEU 9,900 0 - 1.77 3.35 2.76 16.97 8.98 2.36 3.07 0.79 $1,131.74
865441 4.5 TSU 9,900 0 - 1.00 3.35 2.76 16.89 7.99 2.36 3.03 0.79 $1,069.93
856200 6 STSU 13,200 1.57 - 3.54 4.49 3.07 20.59 10.83 2.76 3.07 1.26 $1,964.88
865411 6 TSEU 13,200 0 - 2.00 4.49 3.07 20.75 10.20 3.23 3.07 1.26 $1,312.26
855405 6 TSU 19,800 0 - 2.16 4.37 3.07 22.05 10.51 2.76 3.39 1.26 $1,162.66
856300 7.5 STSU 16,500 2.00 - 3.93 4.37 3.07 22.05 12.28 2.76 3.39 1.26 $2,142.47
855400 7.5 TSEU 16,500 0 - 2.16 4.37 3.07 22.05 10.51 2.76 3.39 1.26 $1,641.38
865601 7.5 TSU 16,500 0 - 1.57 4.37 3.07 22.32 9.69 2.99 3.23 1.26 $1,438.66
855305 9 STSU 19,800 2.00 - 3.93 4.37 3.07 22.05 12.28 2.76 3.39 1.26 $2,683.69
855405 9 TSU 19,800 0 - 2.16 4.37 3.07 22.05 10.51 2.76 3.39 1.26 $2,330.36

Products

MPN: 855000
Type: 0.75 TSU
Working Load Limit (lbs.) : 1,600
Jaw Opening (in.) : 0 - 0.51
S (in.): 1.85
T (in.): 1.18
U (in.): 7.99
V (in.): 3.94
W (in.): 1.46
X (in.): 1.46
Y (in.): 0.39
Price:$534.67
MPN: 865800
Type: 1 TSEU
Working Load Limit (lbs.) : 2,200
Jaw Opening (in.) : 0 - 1.00
S (in.): 2.20
T (in.): 1.97
U (in.): 11.50
V (in.): 5.55
W (in.): 1.46
X (in.): 1.85
Y (in.): 0.59
Price:$539.70
MPN: 856401
Type: 12 STSU
Working Load Limit (lbs.) : 26,400
Jaw Opening (in.) : 2.00 - 3.93
S (in.): 5.98
T (in.): 3.35
U (in.): 25.35
V (in.): 13.54
W (in.): 3.94
X (in.): 3.70
Y (in.): 1.89
Price:$3,414.52
MPN: 865901
Type: 12 TSU
Working Load Limit (lbs.) : 26,400
Jaw Opening (in.) : 0 - 2.04
S (in.): 5.83
T (in.): 3.35
U (in.): 25.51
V (in.): 11.61
W (in.): 3.94
X (in.): 3.70
Y (in.): 1.89
Price:$2,596.78
MPN: 966150
Type: 15 STSU
Working Load Limit (lbs.) : 33,000
Jaw Opening (in.) : 3.14 - 5.90
S (in.): 8.82
T (in.): 3.35
U (in.): 31.81
V (in.): 17.72
W (in.): 5.35
X (in.): 4.17
Y (in.): 1.89
Price:$4,447.49
MPN: 955150
Type: 15 TSU
Working Load Limit (lbs.) : 33,000
Jaw Opening (in.) : 0 - 3.00
S (in.): 8.23
T (in.): 3.35
U (in.): 32.13
V (in.): 14.69
W (in.): 5.35
X (in.): 4.17
Y (in.): 1.89
Price:$4,608.24
MPN: 955170
Type: 17 TSU
Working Load Limit (lbs.) : 37,400
Jaw Opening (in.) : 0 - 3.00
S (in.): 8.23
T (in.): 3.35
U (in.): 32.13
V (in.): 14.69
W (in.): 5.35
X (in.): 4.17
Y (in.): 1.89
Price:$6,584.68
MPN: 855601
Type: 2 TSEU
Working Load Limit (lbs.) : 4,400
Jaw Opening (in.) : 0 - 1.37
S (in.): 3.07
T (in.): 2.76
U (in.): 14.65
V (in.): 7.20
W (in.): 2.20
X (in.): 2.20
Y (in.): 0.63
Price:$815.71
MPN: 966200
Type: 20 STSU
Working Load Limit (lbs.) : 44,000
Jaw Opening (in.) : 3.14 - 5.90
S (in.): 9.80
T (in.): 3.94
U (in.): 37.07
V (in.): 25.20
W (in.): 6.02
X (in.): 5.51
Y (in.): 2.80
Price:$8,874.89
MPN: 955200
Type: 20 TSU
Working Load Limit (lbs.) : 44,000
Jaw Opening (in.) : 0 - 3.14
S (in.): 9.84
T (in.): 3.94
U (in.): 37.32
V (in.): 22.17
W (in.): 6.02
X (in.): 5.51
Y (in.): 2.80
Price:$7,408.06
MPN: 966250
Type: 25 STSU
Working Load Limit (lbs.) : 55,000
Jaw Opening (in.) : 3.14 - 5.90
S (in.): 9.80
T (in.): 3.94
U (in.): 37.01
V (in.): 25.20
W (in.): 6.02
X (in.): 5.51
Y (in.): 2.80
Price:$10,149.77
MPN: 955250
Type: 25 TSU
Working Load Limit (lbs.) : 55,000
Jaw Opening (in.) : 0.19 - 3.34
S (in.): 9.84
T (in.): 3.94
U (in.): 37.32
V (in.): 22.17
W (in.): 5.83
X (in.): 5.51
Y (in.): 2.80
Price:$8,115.77
MPN: 865331
Type: 3 TSEU
Working Load Limit (lbs.) : 6,600
Jaw Opening (in.) : 0 - 1.37
S (in.): 3.07
T (in.): 2.76
U (in.): 14.65
V (in.): 7.20
W (in.): 2.20
X (in.): 2.20
Y (in.): 0.63
Price:$890.81
MPN: 966300
Type: 30 STSU
Working Load Limit (lbs.) : 66,000
Jaw Opening (in.) : 3.14 - 5.90
S (in.): 9.80
T (in.): 3.94
U (in.): 37.24
V (in.): 25.39
W (in.): 6.14
X (in.): 5.59
Y (in.): 2.80
Price:$13,023.23
MPN: 955300
Type: 30 TSU
Working Load Limit (lbs.) : 66,000
Jaw Opening (in.) : 0.39 - 3.54
S (in.): 9.84
T (in.): 3.94
U (in.): 37.17
V (in.): 22.36
W (in.): 6.02
X (in.): 5.59
Y (in.): 2.80
Price:$12,011.81
MPN: 865301
Type: 4.5 TSEU
Working Load Limit (lbs.) : 9,900
Jaw Opening (in.) : 0 - 1.77
S (in.): 3.35
T (in.): 2.76
U (in.): 16.97
V (in.): 8.98
W (in.): 2.36
X (in.): 3.07
Y (in.): 0.79
Price:$1,131.74
MPN: 865441
Type: 4.5 TSU
Working Load Limit (lbs.) : 9,900
Jaw Opening (in.) : 0 - 1.00
S (in.): 3.35
T (in.): 2.76
U (in.): 16.89
V (in.): 7.99
W (in.): 2.36
X (in.): 3.03
Y (in.): 0.79
Price:$1,069.93
MPN: 856200
Type: 6 STSU
Working Load Limit (lbs.) : 13,200
Jaw Opening (in.) : 1.57 - 3.54
S (in.): 4.49
T (in.): 3.07
U (in.): 20.59
V (in.): 10.83
W (in.): 2.76
X (in.): 3.07
Y (in.): 1.26
Price:$1,964.88
MPN: 865411
Type: 6 TSEU
Working Load Limit (lbs.) : 13,200
Jaw Opening (in.) : 0 - 2.00
S (in.): 4.49
T (in.): 3.07
U (in.): 20.75
V (in.): 10.20
W (in.): 3.23
X (in.): 3.07
Y (in.): 1.26
Price:$1,312.26
MPN: 855405
Type: 6 TSU
Working Load Limit (lbs.) : 19,800
Jaw Opening (in.) : 0 - 2.16
S (in.): 4.37
T (in.): 3.07
U (in.): 22.05
V (in.): 10.51
W (in.): 2.76
X (in.): 3.39
Y (in.): 1.26
Price:$1,162.66
MPN: 856300
Type: 7.5 STSU
Working Load Limit (lbs.) : 16,500
Jaw Opening (in.) : 2.00 - 3.93
S (in.): 4.37
T (in.): 3.07
U (in.): 22.05
V (in.): 12.28
W (in.): 2.76
X (in.): 3.39
Y (in.): 1.26
Price:$2,142.47
MPN: 855400
Type: 7.5 TSEU
Working Load Limit (lbs.) : 16,500
Jaw Opening (in.) : 0 - 2.16
S (in.): 4.37
T (in.): 3.07
U (in.): 22.05
V (in.): 10.51
W (in.): 2.76
X (in.): 3.39
Y (in.): 1.26
Price:$1,641.38
MPN: 865601
Type: 7.5 TSU
Working Load Limit (lbs.) : 16,500
Jaw Opening (in.) : 0 - 1.57
S (in.): 4.37
T (in.): 3.07
U (in.): 22.32
V (in.): 9.69
W (in.): 2.99
X (in.): 3.23
Y (in.): 1.26
Price:$1,438.66
MPN: 855305
Type: 9 STSU
Working Load Limit (lbs.) : 19,800
Jaw Opening (in.) : 2.00 - 3.93
S (in.): 4.37
T (in.): 3.07
U (in.): 22.05
V (in.): 12.28
W (in.): 2.76
X (in.): 3.39
Y (in.): 1.26
Price:$2,683.69
MPN: 855405
Type: 9 TSU
Working Load Limit (lbs.) : 19,800
Jaw Opening (in.) : 0 - 2.16
S (in.): 4.37
T (in.): 3.07
U (in.): 22.05
V (in.): 10.51
W (in.): 2.76
X (in.): 3.39
Y (in.): 1.26
Price:$2,330.36
