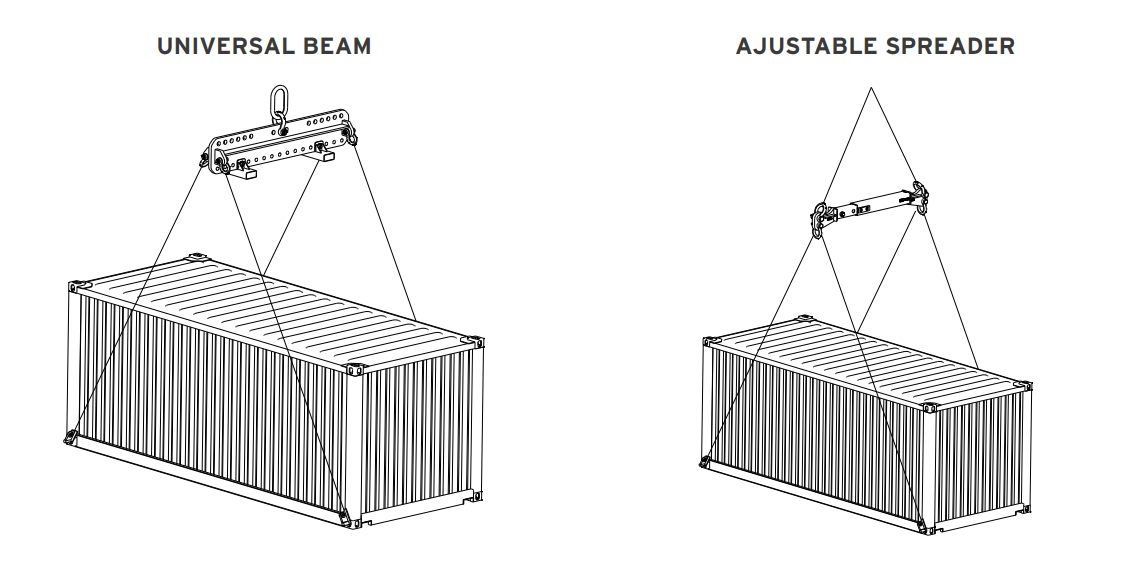

Universal Container Lifting Beam

Manufactured to exceed all ASME B30.20 and OSHA regulations.
Painted safety yellow for increased visibility.
Do not use with damaged, obsolete or rusted containers.
Do not exceed working load limit
Fork pockets used for beam transport only, not for lifting.
Made in U.S.A.
All rigging and shackles by others.
User must determine if container is capable of being lifted with this device in the manner proposed.
ALL lifting equipment individually proof loaded per OSHA requirements and shipped with paperwork.

Description	MPN	WLL	Outside Spread (L)	Shackle Size	Weight (lbs)	Price	Quantity
Universal Container Lifting Beam (25828)	Universal Beam	25828	75,000	98"	2”, 1 3/4" Top, 1 1/2” Bottom	1,725	$16,080.17

80,000 lbs 7'-10' Adj Spreader Beam Shackle Connections (20136)	Adjustable Spreader	20136	80,000	min 7' - max 10'	2” Top, 2” Bottom	700	$11,230.81

5'-10 Low HR Adj Length 40,000 lbs WLL (22173)	Lift Beam	22173	40,000	60" - 120"	N/A Top, 1 1/82” Bottom	1,574	$9,955.56

Description: Universal Beam

MPN: 25828

WLL: 75,000

Outside Spread (L): 98"

Shackle Size: 2”, 1 3/4" Top, 1 1/2” Bottom

Weight (lbs): 1,725

Price:$16,080.17

Description: Adjustable Spreader

MPN: 20136

WLL: 80,000

Outside Spread (L): min 7' - max 10'

Shackle Size: 2” Top, 2” Bottom

Weight (lbs): 700

Price:$11,230.81

Description: Lift Beam

MPN: 22173

WLL: 40,000

Outside Spread (L): 60" - 120"

Shackle Size: N/A Top, 1 1/82” Bottom

Weight (lbs): 1,574

Price:$9,955.56
