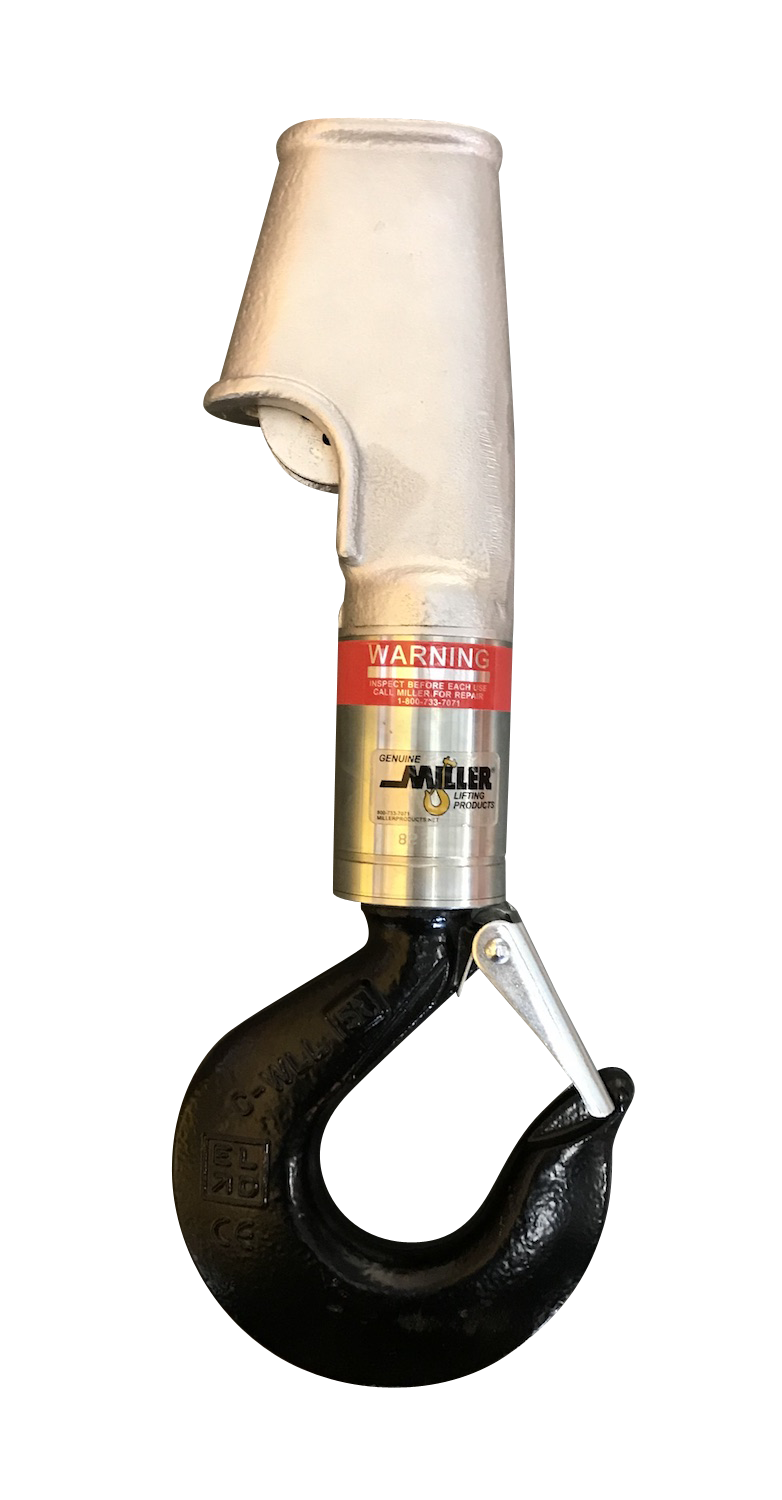

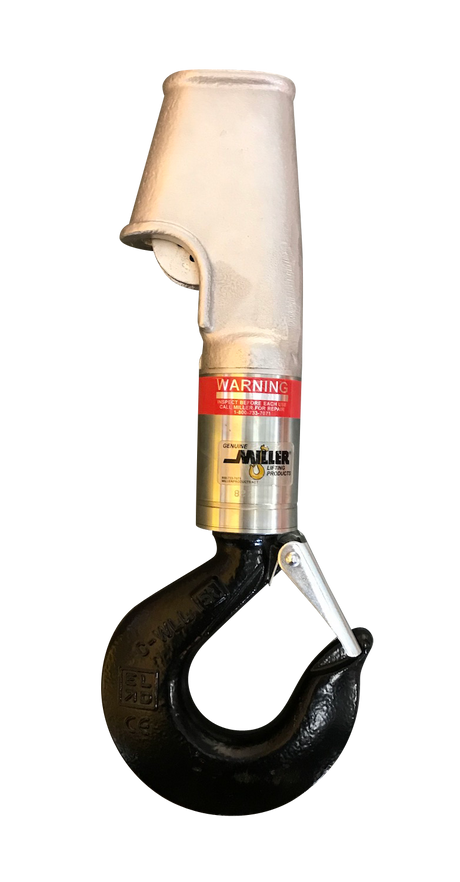

Wedge to Hook – Type 715

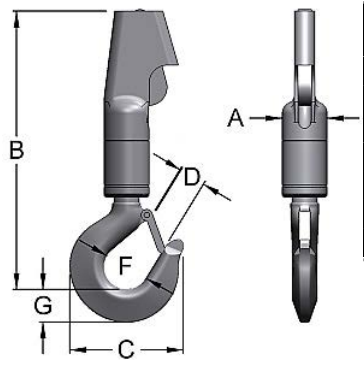

Working Load Limit (ton)	MPN	Rope Size	A	B	C	D	F	G	Weight (lbs)	Price	Quantity
Miller Angular Contact Ball Bearing Swivel Model C-715 Wedge to Hook WLL 3 tons (C-715)	3	C-715	1/2	2	12.63	4.88	1.34	2	1.38	7.81	$1,058.40

Miller Angular Contact Ball Bearing Swivel Model D-715 Wedge to Hook WLL 5 tons	5	D-715	1/2, 5/8	2.5	15.44	6.5	1.81	2.5	1.81	14.87	$1,398.60

Miller Angular Contact Ball Bearing Swivel Model EE-715 Wedge to Hook WLL 8.5 tons	8.5	EE-715	1/2, 5/8, 3/4	2.88	18.56	8.81	2.25	3.25	2.59	29.25	$2,579.85

Miller Angular Contact Ball Bearing Swivel Model G-715 Wedge to Hook WLL 10 tons	10	G-715	3/4, 7/8, 1	4	23.63	11	3	3.25	3	60	$3,109.05

Miller Angular Contact Ball Bearing Swivel Model GG-715 Wedge to Hook WLL 15 tons	15	GG-715	3/4, 7/8, 1	4	23.63	11	3	4.25	3	60	$3,373.65

Products

Working Load Limit (ton): 3

MPN: C-715

Rope Size: 1/2

A: 2

B: 12.63

C: 4.88

D: 1.34

F: 2

G: 1.38

Weight (lbs): 7.81

Price:$1,058.40

Working Load Limit (ton): 5

MPN: D-715

Rope Size: 1/2, 5/8

A: 2.5

B: 15.44

C: 6.5

D: 1.81

F: 2.5

G: 1.81

Weight (lbs): 14.87

Price:$1,398.60

Working Load Limit (ton): 8.5

MPN: EE-715

Rope Size: 1/2, 5/8, 3/4

A: 2.88

B: 18.56

C: 8.81

D: 2.25

F: 3.25

G: 2.59

Weight (lbs): 29.25

Price:$2,579.85

Working Load Limit (ton): 10

MPN: G-715

Rope Size: 3/4, 7/8, 1

A: 4

B: 23.63

C: 11

D: 3

F: 3.25

G: 3

Weight (lbs): 60

Price:$3,109.05

Working Load Limit (ton): 15

MPN: GG-715

Rope Size: 3/4, 7/8, 1

A: 4

B: 23.63

C: 11

D: 3

F: 4.25

G: 3

Weight (lbs): 60

Price:$3,373.65
