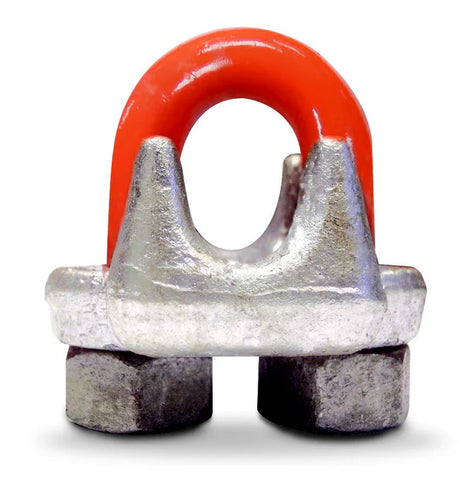

Wire Rope Clips USA

SIZES: 1/8 TO 1-1/2 IN.

Benefits & Features

  • Meets the dimensional and finish requirements of FF-C-450
  • Drop forged saddle
  • Forged saddles include size,
  • USA and CM logo
  • Drop-forged base for superior function and toughness
Shackles
Hooks & Fittings
Wire Rope Clips USA
Lifting Clutches/Dog Bones for Precast Concrete
M&W Coil Lifters
Lifting Rings
Shoulder Eye Bolts USA

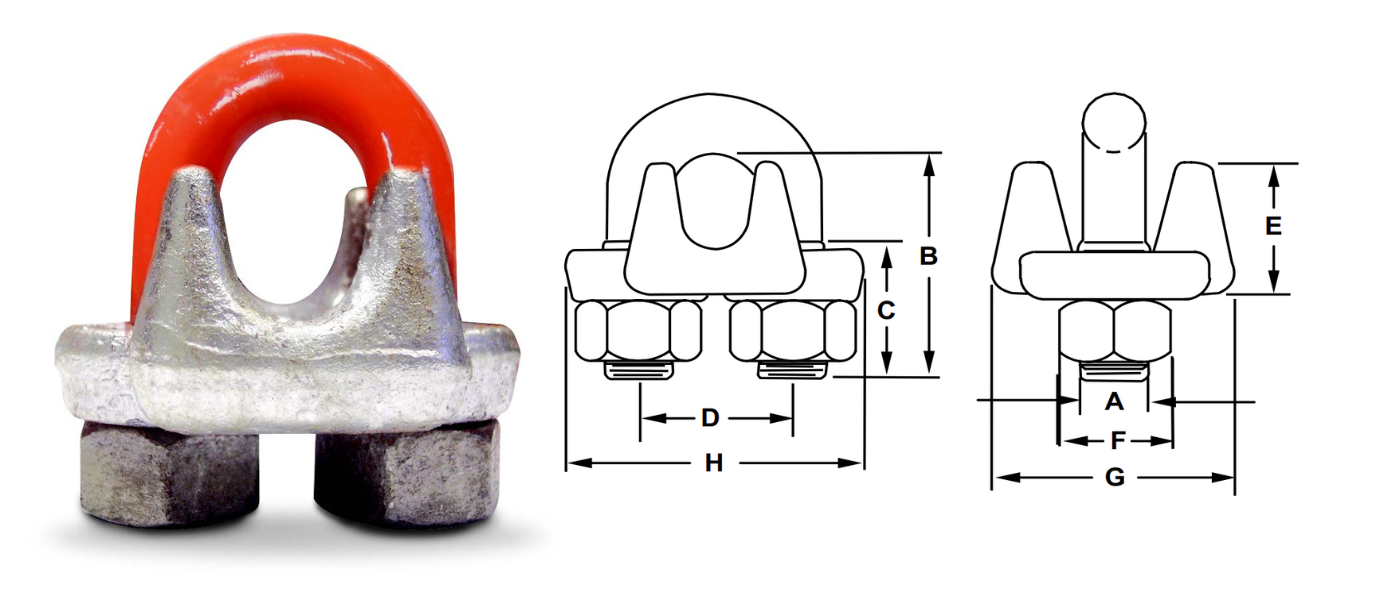

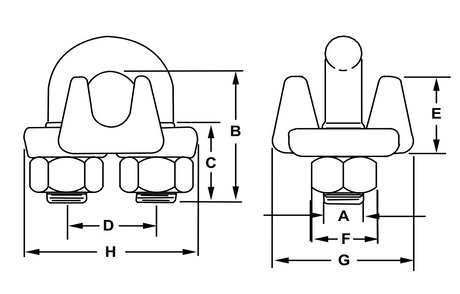

Size (in.) MPN A (in.) B (in.) C (in.) D (in.) E (in.) F (in.) G (in.) H (in.) Price Quantity
1/8 M244-2 1/8-24UNC 0.72 0.44 0.47 0.42 0.38 0.81 1.09 $6.11
3/16 M245-2 1/4-20UNC 0.94 0.56 0.59 0.50 0.50 0.94 1.19 $6.59
1/4 M246-2 5/16-18UNC 1.03 0.50 0.75 0.66 0.56 1.19 1.44 $6.75
5/16 M247-2 3/8-16UNC 1.38 0.75 0.88 0.72 0.69 1.31 1.69 $7.16
3/8 M248-2 7/16-14UNC 1.50 0.75 1.00 0.91 0.75 1.63 1.94 $8.68
7/16 M249-2 1/2-13UNC 1.88 1.00 1.19 1.06 0.88 1.78 2.31 $12.15
1/2 M250 1/2-13UNC 1.88 1.00 1.19 1.16 0.88 1.91 2.31 $13.80
9/16 M296 9/16-12UNC 2.38 1.25 1.31 1.24 0.94 1.94 2.50 $14.67
5/8 M251 9/16-12UNC 2.38 1.25 1.31 1.34 0.94 2.00 2.49 $15.17
3/4 M252 5/8-11UNC 2.75 1.44 1.50 1.44 1.06 2.34 2.81 $19.70
7/8 M253 3/4-10UNC 3.13 1.63 1.75 1.63 1.25 2.44 3.16 $28.10
1 M254 3/4-10UNC 3.50 1.81 1.88 1.78 1.25 2.63 3.47 $32.42
1-1/8 M255 3/4-10UNC 3.88 2.00 2.00 1.88 1.25 2.81 3.59 $36.19
1-1/4 M256 7/8-9UNC 4.25 2.13 2.31 2.19 1.44 3.18 4.22 $54.79
1-3/8 M257 7/8-9UNC 4.63 2.31 2.38 2.25 1.44 3.08 4.25 $68.32
1-1/2 M258 7/8-9UNC 4.94 2.38 2.59 2.50 1.44 3.41 4.47 $70.23

Products

Size (in.): 1/8
MPN: M244-2
A (in.): 1/8-24UNC
B (in.): 0.72
C (in.): 0.44
D (in.): 0.47
E (in.): 0.42
F (in.): 0.38
G (in.): 0.81
H (in.): 1.09
Price:$6.11
Size (in.): 3/16
MPN: M245-2
A (in.): 1/4-20UNC
B (in.): 0.94
C (in.): 0.56
D (in.): 0.59
E (in.): 0.50
F (in.): 0.50
G (in.): 0.94
H (in.): 1.19
Price:$6.59
Size (in.): 1/4
MPN: M246-2
A (in.): 5/16-18UNC
B (in.): 1.03
C (in.): 0.50
D (in.): 0.75
E (in.): 0.66
F (in.): 0.56
G (in.): 1.19
H (in.): 1.44
Price:$6.75
Size (in.): 5/16
MPN: M247-2
A (in.): 3/8-16UNC
B (in.): 1.38
C (in.): 0.75
D (in.): 0.88
E (in.): 0.72
F (in.): 0.69
G (in.): 1.31
H (in.): 1.69
Price:$7.16
Size (in.): 3/8
MPN: M248-2
A (in.): 7/16-14UNC
B (in.): 1.50
C (in.): 0.75
D (in.): 1.00
E (in.): 0.91
F (in.): 0.75
G (in.): 1.63
H (in.): 1.94
Price:$8.68
Size (in.): 7/16
MPN: M249-2
A (in.): 1/2-13UNC
B (in.): 1.88
C (in.): 1.00
D (in.): 1.19
E (in.): 1.06
F (in.): 0.88
G (in.): 1.78
H (in.): 2.31
Price:$12.15
Size (in.): 1/2
MPN: M250
A (in.): 1/2-13UNC
B (in.): 1.88
C (in.): 1.00
D (in.): 1.19
E (in.): 1.16
F (in.): 0.88
G (in.): 1.91
H (in.): 2.31
Price:$13.80
Size (in.): 9/16
MPN: M296
A (in.): 9/16-12UNC
B (in.): 2.38
C (in.): 1.25
D (in.): 1.31
E (in.): 1.24
F (in.): 0.94
G (in.): 1.94
H (in.): 2.50
Price:$14.67
Size (in.): 5/8
MPN: M251
A (in.): 9/16-12UNC
B (in.): 2.38
C (in.): 1.25
D (in.): 1.31
E (in.): 1.34
F (in.): 0.94
G (in.): 2.00
H (in.): 2.49
Price:$15.17
Size (in.): 3/4
MPN: M252
A (in.): 5/8-11UNC
B (in.): 2.75
C (in.): 1.44
D (in.): 1.50
E (in.): 1.44
F (in.): 1.06
G (in.): 2.34
H (in.): 2.81
Price:$19.70
Size (in.): 7/8
MPN: M253
A (in.): 3/4-10UNC
B (in.): 3.13
C (in.): 1.63
D (in.): 1.75
E (in.): 1.63
F (in.): 1.25
G (in.): 2.44
H (in.): 3.16
Price:$28.10
Size (in.): 1
MPN: M254
A (in.): 3/4-10UNC
B (in.): 3.50
C (in.): 1.81
D (in.): 1.88
E (in.): 1.78
F (in.): 1.25
G (in.): 2.63
H (in.): 3.47
Price:$32.42
Size (in.): 1-1/8
MPN: M255
A (in.): 3/4-10UNC
B (in.): 3.88
C (in.): 2.00
D (in.): 2.00
E (in.): 1.88
F (in.): 1.25
G (in.): 2.81
H (in.): 3.59
Price:$36.19
Size (in.): 1-1/4
MPN: M256
A (in.): 7/8-9UNC
B (in.): 4.25
C (in.): 2.13
D (in.): 2.31
E (in.): 2.19
F (in.): 1.44
G (in.): 3.18
H (in.): 4.22
Price:$54.79
Size (in.): 1-3/8
MPN: M257
A (in.): 7/8-9UNC
B (in.): 4.63
C (in.): 2.31
D (in.): 2.38
E (in.): 2.25
F (in.): 1.44
G (in.): 3.08
H (in.): 4.25
Price:$68.32
Size (in.): 1-1/2
MPN: M258
A (in.): 7/8-9UNC
B (in.): 4.94
C (in.): 2.38
D (in.): 2.59
E (in.): 2.50
F (in.): 1.44
G (in.): 3.41
H (in.): 4.47
Price:$70.23
