1 1/2" - 6 Side Load Hoist Ring 17000 lbs WLL (43550)

Manufacturer: ACTEK® Manufacturing & Engineering
Part Number: 43550
Description: Side Load Hoist Ring
Rated Load: 17000 lbs
Thread Size: 1 1/2" - 6

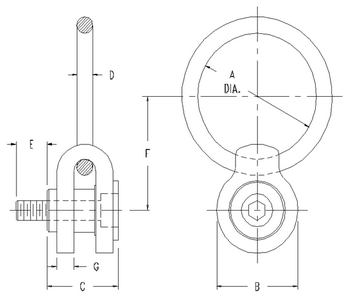

A: 6 in
B: 4 1/2 in
C: 4.80 in
D: 1 3/8 in
E: 2 1/2 in
F: 6.44 in
G: 1 in
Torque: 250 ft-lbs
Weight: 28 lbs
Swivel Angle: 360°
Pivot Angle: 180°
Safety Factor: 5:1
Material: Alloy Steel
Finish: Black Oxide (Also available: Cadmium Plated, Electroless Nickel Plated, Zinc Plated)
Inspected: Magnetic Particle Inspected
Heat Treat: Certified Heat Treatment
Note: Also available with Master Links
Thread: Longer thread projected and Fine thread available
