1/2"-13 SPEED BASE® Hoist Ring 2,500 lbs WLL (42002)

Manufacture: ACTEK® Manufacturing & Engineering
Part Number: 42002
Description: SPEED BASE®
Rated Load: 2,500 lbs
Thread Size: 1/2"-13

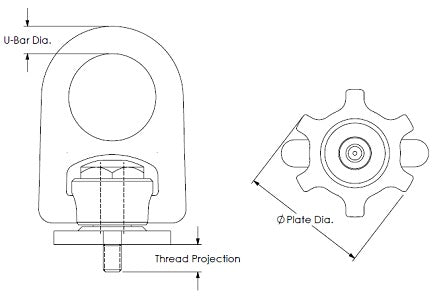

Thread Projection: 3/4 in
U-Bar Diameter: 3/4 in
Plate Diameter: 3 1/2 in
Torque: No torque wrench required. Just spin the base down flush and tap one of the lugs to tighten.
Swivel Angle: 360°
Pivot Angle: 180°
Safety Factor: 5:1
Material: Alloy Steel
Finish: Black Oxide (Also available: Cadmium Plated, Electroless Nickel Plated, Zinc Plated)
Tested: 200% Proof-Load Tested with Serial Number for Traceability
Inspected: Magnetic Particle Inspected
Heat Treat: Certified Heat Treatment
Rated at: 100% From 0° - 90°
ASME B30.26: Meets or exceeds requirements
Thread: Longer thread projection and Fine thread available
