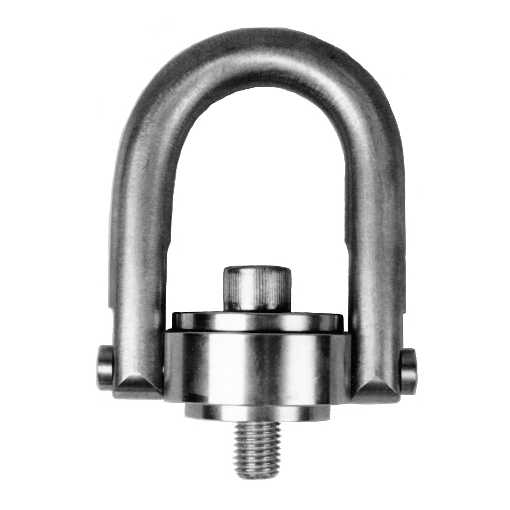

1/4" - 20 Stainless Steel Hoist Ring 300 lbs WLL (58100)

Manufacture: ACTEK® Manufacturing & Engineering
Part Number: 58100
Description: Standard U-bar
Rated Load: 300 lbs
Thread Size: 1/4" - 20

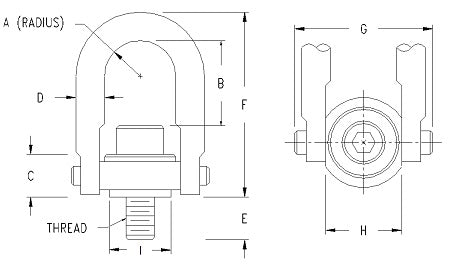

A: 0.47 in
B: 1.39 in
C: 0.71 in
D: 3/8 in
E: 0.54 in
F: 2.72 in
G: 1.91 in
H: 1 in
I: 0.85 in
Torque: 3 ft-lbs
Weight: .3 lbs
Swivel Angle: 360°
Pivot Angle: 180°
Safety Factor: 5:1
Material: 316 Stainless Steel
Inspection: Liquid Penetrant Inspected
Tested: 200% Proof-Load Tested with Serial Number for Traceability
Rated at: 100% From 0° - 90°
ASME B30.26: Meets or exceeds requirements
Replacement Screw P/N: 58319
Thread: Longer thread projection and Fine thread available
