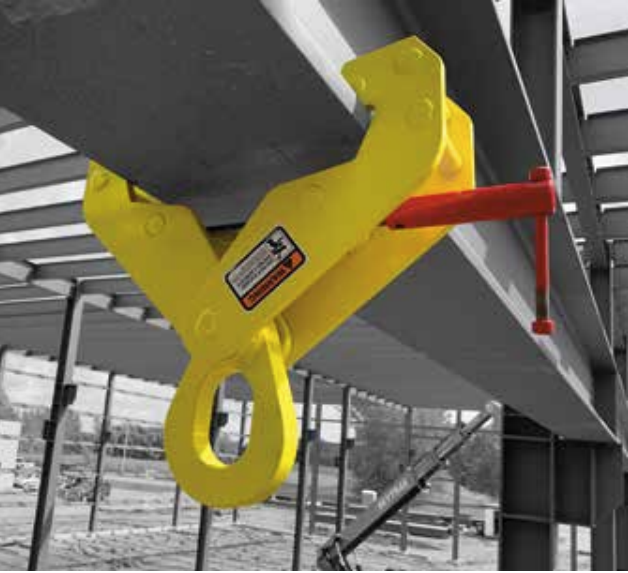

13.38" MAX SLIP OVER WIDTH 22,400# BEAM CLAMP (13674)

• Manufactured to exceed all ASME B30.20 and OSHA regulations. • Painted safety yellow for increased visibility. • Do not side load above angles of 45° from vertical. • Durable construction ideally suited to jobsite or warehouse use. • Made in U.S.A. • Custom designs available - call for engineering. • ALL lifting equipment individually proof loaded per OSHA requirements. • Refer to side loading table below for reduction factors for side loading applications. • Clamps to be used for lifting, pulling or as an anchor point. • Ratings apply to clamps only. User is responsible for engineering calculations for all support steelwork. • Max Flange Thickness: 1.25 in • Max Flange Width: 13.75 in • Min Flange Width: 4.50 in • Max Slip Over Width: 13.38 in WARNING: All clamps must be correctly applied to the beam by a competent person and fully hand tightened. If in doubt, contact M&W for recommendations.
