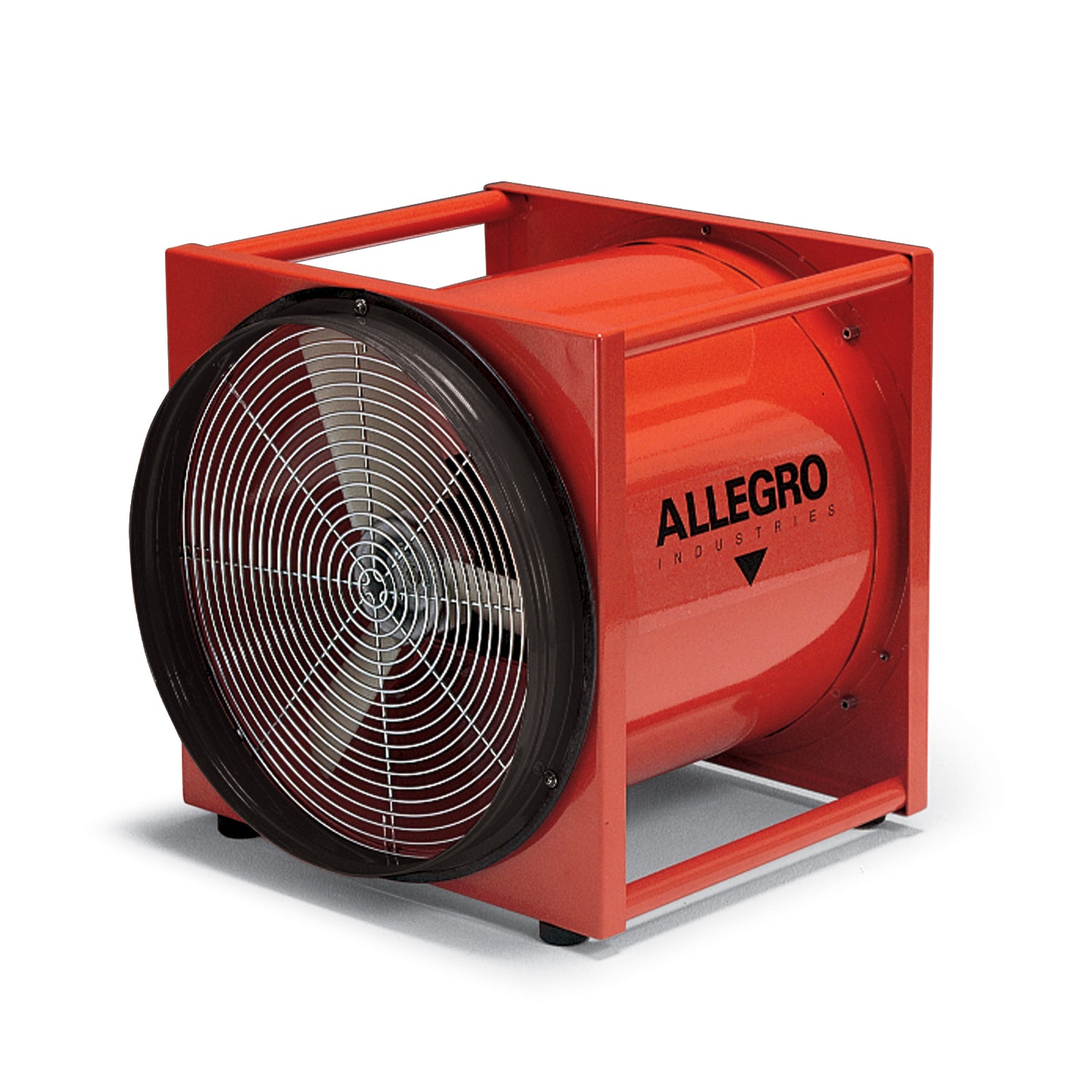

20″ Axial Explosion-Proof (EX) High Output Metal Blower (220V AC/50 Hz). Does NOT meet CSA C22.2 No. 113 requirements. (9525-50EXE)

Powered by a 1 1/2 HP, 3450 RPM motor, this blower is designed for applications requiring a maximum amount of output. The housing is made from 16-gauge cold rolled steel and powder-coated in a "safety orange" color. It includes a 3-blade impeller, 125V plug, interchangeable flange for intake or exhaust mounting, integrated carry handles for easy transport, and a steel/zinc plated grill. NOTE: Explosion-proof blowers require an explosion-proof socket.

1-1/2 HP
Available in both US and International wiring configurations
Epoxy powder-coated in "safety orange"
16-gauge cold rolled steel housing
Integrated carrying handles
Meets Class I, Division 1 and 2, Groups C & D, Class II Division 1 and 2 Groups F & G.
Interchangeable flange
Anti-Static glass reinforced polyamide (PAGAS) three blade fan with aluminum hub
Made in USA





Power Tools Amps: 9.6 A
PPE Standards: N/A
Blower Motor HP: 1 1/2
Blower CFM: 6837
Blower M3 per Hour: 11616
Blower M3 per Min: 194
Blower CFM 1 Bend Duct: 5268
Blower M3 per Hour 1 Bend Duct: 8950
Blower CFM 2 Bend Duct: 4829
Blower M3 per Hour 2 Bend Duct: 8204
Blower Electrical Current: 220V AC, 50 Hz
Blower Duct: Not Included
Blower Configuration: EX
Blower Housing: Metal
Blower Design: Axial
Blower Phase: Single
Fit for Hazardous Locations: Yes
Blower Respiratory EU 220V: Yes
Outdoor Rated: N/A
Port Size: 20"
