WATERMAN SUPPLY  |  SKU: SL408B-8SS

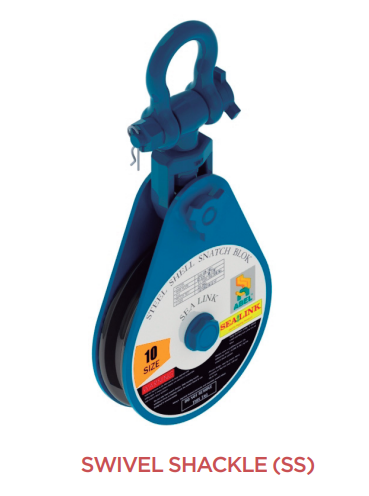

8 ton 8" sheave snatch block with swivel shackle (SL408B-8SS)

$40.00 $907.50

Blocks built to 4:1 Design Factor.
• Available with these top fittings - Swivel Hook (SH), Swivel Shackle (SS), Tailboard (TB).
• Can be ordered with Top Dead End (TDE).
• Sheaves have bronze bushings.
• All accessories are forged.
• Products are manufactured under the Standard ASME B30.26
• Dimensions shown represent current models and are subject to change.
• Blocks shown are standard models.
• Custom models available upon request.



5/8"-3/4" wire rope
PN SL408B-8SS

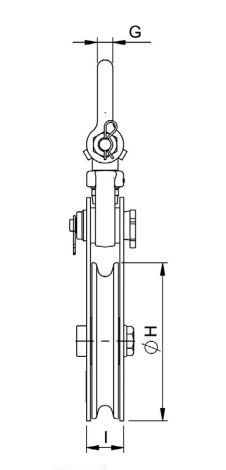

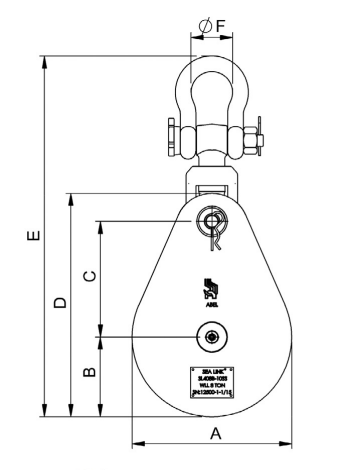

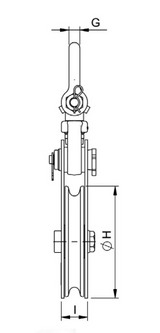

Specifications
  • A Size
    8 in
  • B Size
    4 in
  • C Size
    6.3 in
  • D Size
    12 in
  • E Size
    20.9 in
  • F Size
    2.7 in
  • G Size
    1 in
  • H Size
    8 in
  • I Size
    2.4 in
  • Working Load Limit
    16,000 lbs
