M12 x 1.75 Forged Side Pull 2000 lbs WLL (68320)

Manufacturer: ACTEK® Manufacturing & Engineering
Part Number: 68320
Description: Forged Side Pull
Rated Load: 2000 lbs

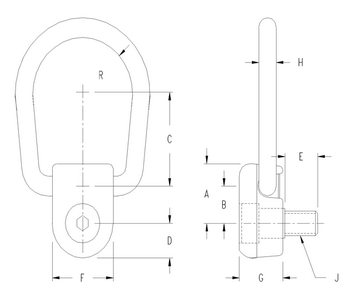

Thread Size (J): M12 x 1.75
A: 1 5/8 in
B: 7/8 in
C: 1 7/8 in
D: 7/8 in
E: 3/4 in
F: 1 3/4 in
G: 1 5/16 in
H: 7/16 in
R: 1 1/8 in
Torque: 20-25 ft-lbs
Weight: 1.7 lbs
Swivel Angle: 360°
Safety Factor: 5:1 (Side Pull Direction Only)
Material: Alloy Steel
Finish: Black Oxide
Inspected: Magnetic Particle Inspected
Heat Treat: Certified Heat Treatment
