M12 x 1.75 MOLD HANDLER® 1050 kg WLL (42940)

Manufacturer: ACTEK® Manufacturing & Engineering
Part Number: 42940
Description: The MOLD HANDLER® Double Swivel Eye Bolts (Standard)
Rated Load: 1050 kg
Thread Size: M12 x 1.75

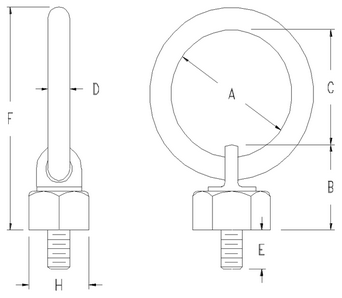

A: 3 in
B: 2.68 in
C: 2.57 in
D: 5/8 in
E: 3/4 in
F: 5.87 in
H: 2 in
Weight: 3 lbs
Swivel Angle: 360°
Pivot Angle: 180°
Safety Factor: 4:1
Material: Alloy Steel
Finish: Black Oxide (Also available: Cadmium Plated, Electroless Nickel Plated, Zinc Plated)
Tested: 200% Proof-Load Tested with Serial Number for Traceability
Inspected: Magnetic Particle Inspected
Heat Treat: Certified Heat Treatment
Rated at: 100% From 0° - 90°
