M20 x 2.50 Forged Side Pull 5000 lbs WLL (68350)

Manufacturer: ACTEK® Manufacturing & Engineering
Part Number: 68350
Description: Forged Side Pull
Rated Load: 5000 lbs
Thread Size (J): M20 x 2.50

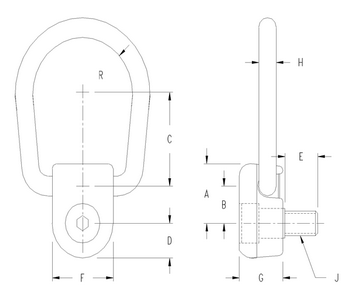

A: 2 3/16 in
B: 1 1/8 in
C: 2 3/4 in
D: 1 in
E: 1 in
F: 2 in
G: 1 11/16 in
H: 5/8 in
R: 1 3/8 in
Torque: 70-80 ft-lbs
Weight: 3.5 lbs
Swivel Angle: 360°
Safety Factor: 5:1 (Side Pull Direction Only)
Material: Alloy Steel
Finish: Black Oxide
Inspected: Magnetic Particle Inspected
Heat Treat: Certified Heat Treatment
