M&W | SKU: M&W-19120-48

39 TON 4' MODULAR SPREADER A53 GRADE B, SCHEDULE 40 PIPE MIN TOP RIGGING ANGLE 45 DEG (19120-48)

$5,121.83

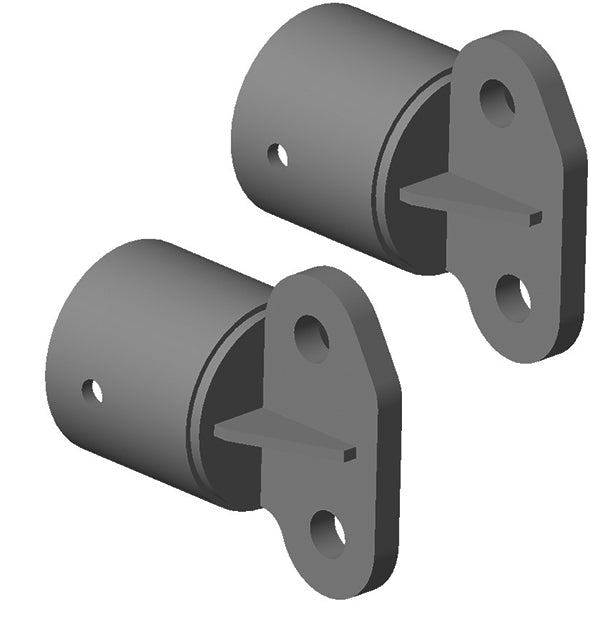

Use with 8" Spreader Beam End Cap Pair (19120)

Specifications

Length

4 ft
5 ft
6 ft
8 ft
10 ft
12 ft
14 ft
15 ft
16 ft
18 ft
20 ft
22 ft
24 ft
26 ft
28 ft
30 ft
32 ft
34 ft
36 ft
Working Load Limit

78,000 lbs
78,000 lbs
78,000 lbs
78,000 lbs
78,000 lbs
76,000 lbs
72,000 lbs
72,000 lbs
70,000 lbs
66,000 lbs
62,000 lbs
58,000 lbs
54,000 lbs
50,000 lbs
46,000 lbs
42,000 lbs
38,000 lbs
32,000 lbs
30,000 lbs
MPN

19120
Domestic

USA
Weight

370 lbs
400 lbs
430 lbs
485 lbs
545 lbs
600 lbs
660 lbs
685 lbs
715 lbs
775 lbs
830 lbs
885 lbs
945 lbs
1000 lbs
1060 lbs
1115 lbs
1175 lbs
1230 lbs
1285 lbs
Pipe Size

8"
