1 1/2" - 6 Stainless Steel Hoist Rings 12,000 lbs WLL (58404)

Manufacturer: ACTEK® Manufacturing & Engineering
Part Number: 58404
Description: Standard U-Bar
Rated Load: 12,000 lbs
Thread Size: 1 1/2" - 6

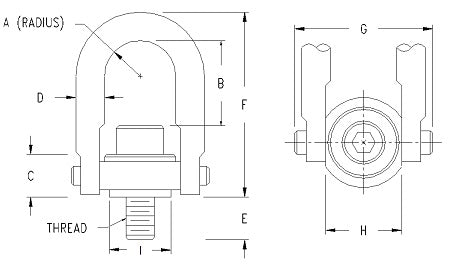

A: 2.27 in
B: 6.50 in
C: 2.81 in
D: 1 3/4 in
E: 2.70 in
F: 12.56 in
G: 8.34 in
H: 4.87 in
I: 4.15 in
Torque: 400 ft-lbs
Weight: 34 lbs
Swivel Angle: 360°
Swivel Angle: 360°
Pivot Angle: 180°
Safety Factor: 5:1
Material: 316 Stainless Steel
Inspection: Liquid Penetrant Inspected
Tested: 200% Proof-Load Tested with Serial Number for Traceability
Rated at: 100% From 0° - 90°
ASME B30.26: Meets or exceeds requirements
Replacement Screw P/N: 58444
Thread: Longer thread projection and Fine thread available
